DVB-T2/T/C to USB, DVB-ASI/SPI
DVB-ASI, DVB-SPI Outputs
Free Application Software
Multi-Standard DVB-T2/T/C Receiver, Recorder & Converter
Supports 6, 7 & 8 MHz Bandwidth
High Speed USB 2.0
Windows Drivers + SDK
Free Application Software, DVSStation3
DVB-T2/T/C Compliant COFDM Reception
Input Frequency Range:
- High Band: 434.0 MHz to 858.0 MHz.
- Mid Band: 149.5 MHz to 426.0 MHz.
- Low Band: 50.5 MHz to 142.5 MHz.
- DVB-T/T2: QPSK, 16QAM, 64QAM
- DVB-C: 64QAM, 128QAM, 256QAM
Guard Interval: 1/4, 1/8, 1/16, 1/32
Supports hierarchical & non-hierarchical
Supports 188, 204 Transport Packet Sizes

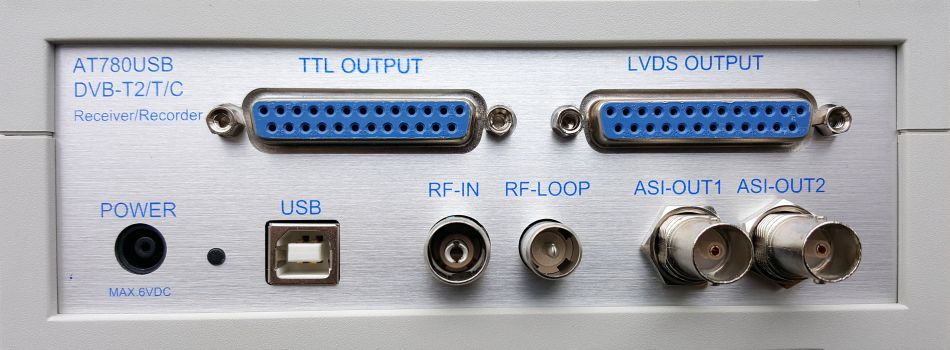

RF Loop Through Output
Simultaneous two Serial(ASI) & two Parallel (SPI) Outputs
Supports DVB According to Standard A1010 Rev1 and EN50083
Application:Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT780USB is an ideal solution for a number of applications such as:
Specification:On Board Buffer: 16 Mbytes
Application Software:DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.
DVB-T2 Mode Settings

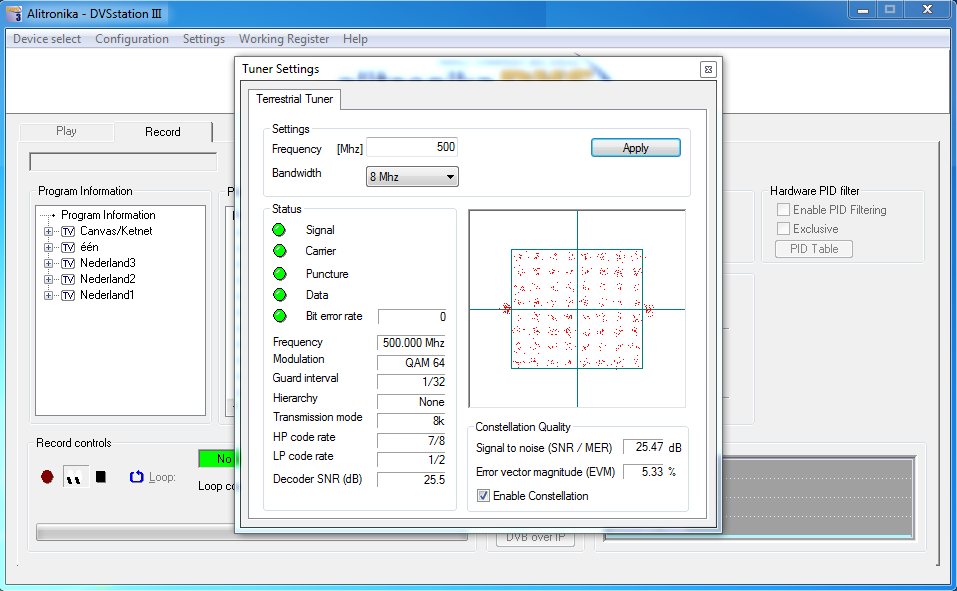

DVB-T Mode Settings
DVB-C Mode Settings

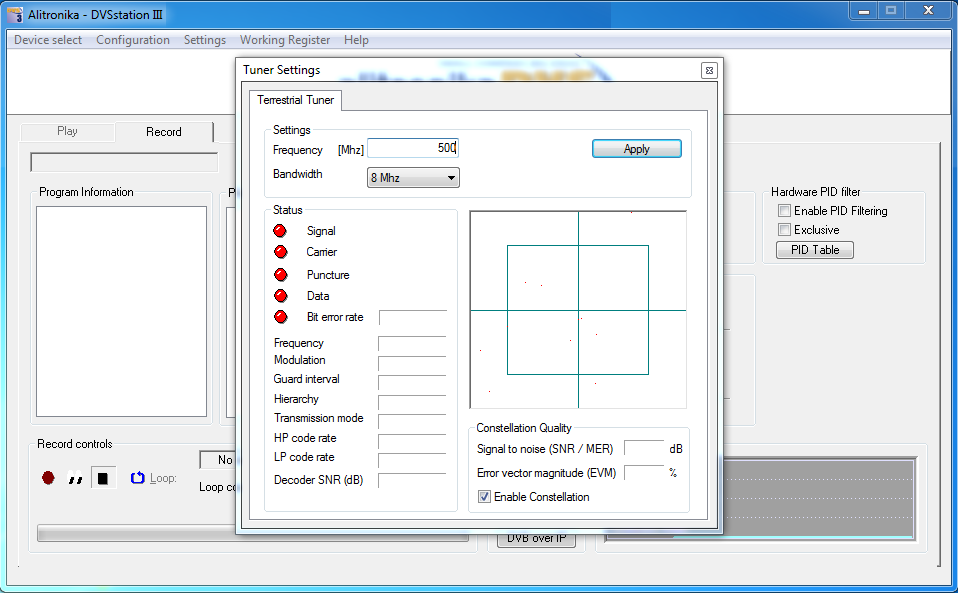

Error screen when selecting wrong settings or no RF

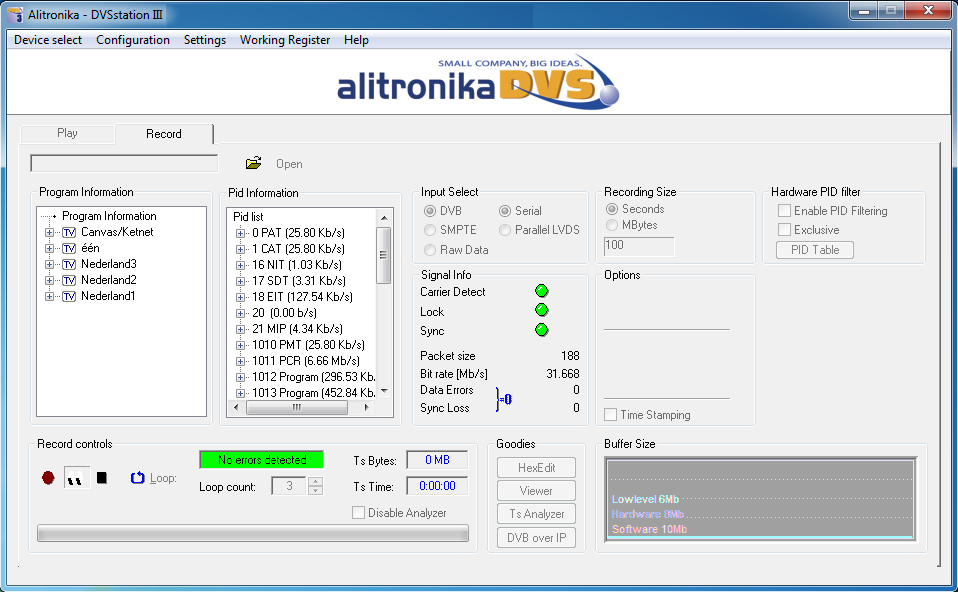

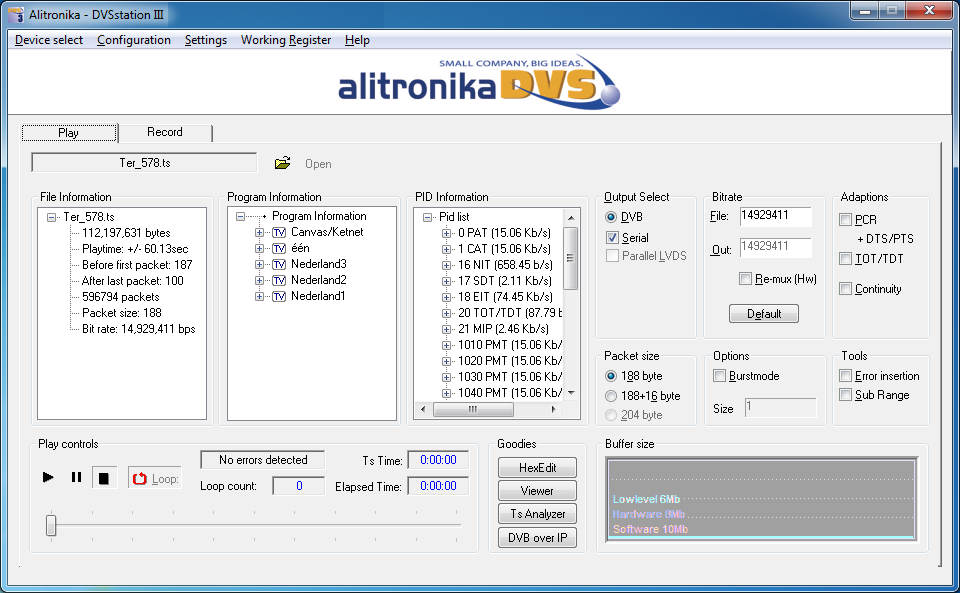

The application software provides the user with many functions & features such as :
Hardware Working Regiters are accessable for monitoring
Among the "Goodies" are a Video Viewer
A DVB to IP Player/Converter
As well as the Integrated Quick TS Analyzer, TSReadersupport these devices.
