Outline

COL-5011M Tuner input, RF 4 carriers output, support Gigabit IP output at the same time, mainly used for interface conversion equipment of digital TV head end. The device integrates demodulation and modulation functions in one, can simultaneously demodulate and package up to 24 Tuner input TS stream into an IP packet, Supports 4 ASI inputs at the same time. And can modulate all inputs with 4 carrier output for different modulation way, such as DVB-C, DVB-T/T2, DVB-S/S2, ISDB-T and ATSC-T all modulation ways can be supported meantime, client can choose any according to requirement.

  Standard Features

 Decode MPEG-2 and MPEG-4 Transport Streams Packaged into IP Packets
 Supports 1 MPTS output (Independent ASI output)
 Supports 4/8/12/16/20/24 Tuner inputs
 Supports 4 carrier DVB-C/T, ISDB-T, ATSC output
 Supports 4 ASI inputs
 Supports 2 channel independent ASI output
 Supports Gigabit IP output, UDP/RTP protocol

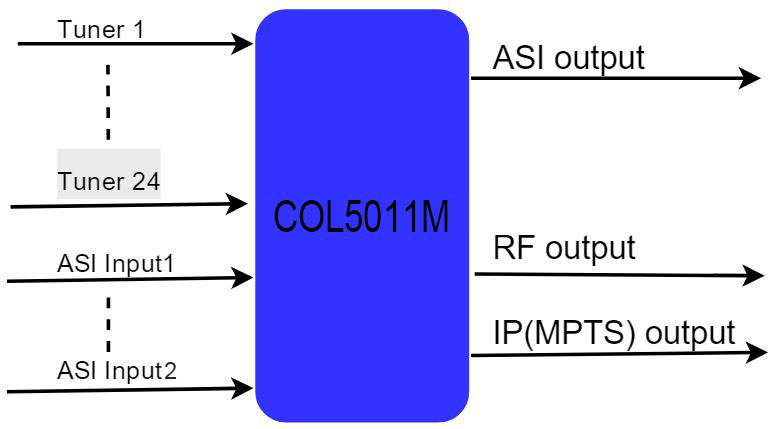

  Block Diagram

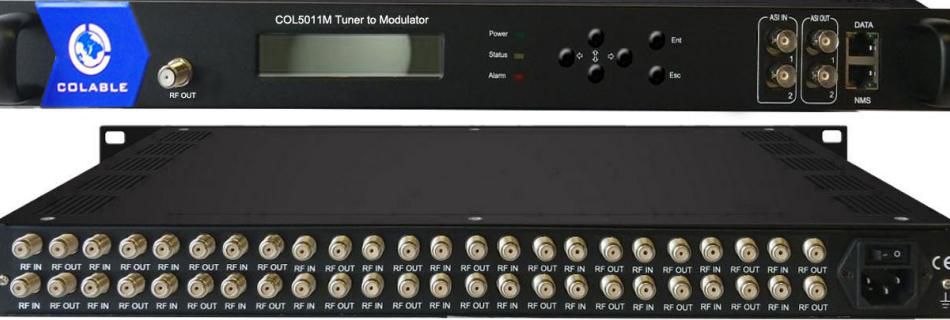

  Connections

  Specification

   Input:
 4/8/12/16/20/24 tuners input+4 ASI input
   DVB-C
 Standard: J.83A(DVB-C), J.83B, J.83C
 Frequency in: 30 MHz~1000 MHz
 Constellation: 16/32/64/128/256 QAM
   DVB-S/S2
 Input Frequency: 950-2150MHz
 Symbol rate: QPSK 2~45Mbauds (DVB-S), QPSK1~45Mbauds, 8PSK 2~30Mbauds (DVB-S2)
 Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
 Constellation: QPSK, 8PSK
   DVB-T/T2
 Frequency In: 30MHz ~999.999 MHz
 Bandwidth: 6/7/8 M bandwidth
   ATSC-T
 Input frequency: 54MHz~858MHz
 Bandwidth: 6M bandwidth
   ISDB-T
 Input frequency: 30-1000MHz
   Output:
 4 DVB-T / 4 DVB-C / 4 ATSC / 4 ISDBT
 1MPTS IP mirrored output over UDP and RTP/RTSP protocol through IP port
 2 ASI outputs
   BISS Descrambling:
 Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
