DVB-T2 Modulator

  4 ASI Inputs

  T2 over IP Input

  10MHz input/loop out

  1PPS input/loop out

  DVB-T2 RF output

spade spade

  Download Datasheet:


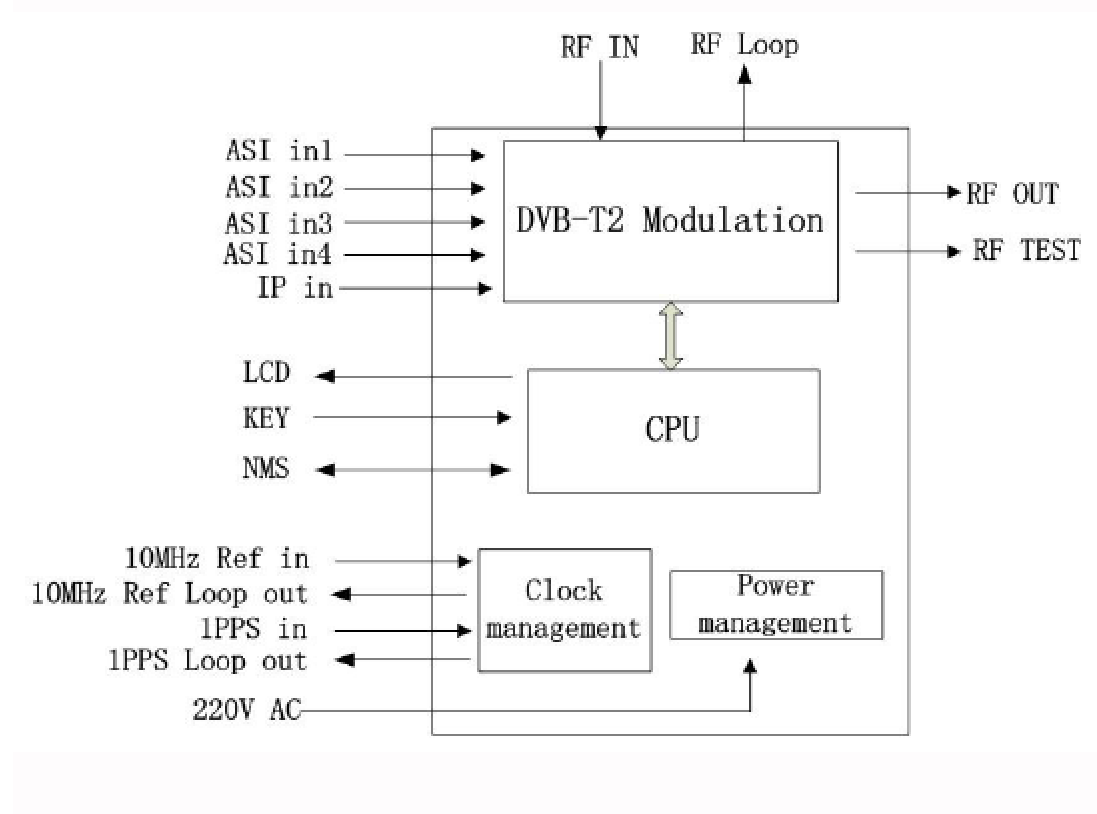

 COL5601 DVB-T2 modulator is our new product developed complying with the DVB-T2 standard.
 With its advanced modulating technology, this modulator can effectively make use of the ground spectrum resources and make it possible to provide reliable signals for fixed, mobile and portable devices.
 Compared with DVB-T, the channel capacity is increased by 30% under the similar carrier to noise ratio (CNR) threshold.
 COL5601 DVB-T2 modulator also supports single-PLP and multi-PLP (option) to receive T2-MI from DVB-T2 gateway through its ASI and IP port. (This function is also option.)
 Moreover, this device can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T2 STB.

  Standard Features

 Fully complying with EN302 755 standard
 4 ASI input ports (for 1 channel TS input with 3 ports for backup)
 T2-MI over IP input (Option)
 10MHz input/loop out, 1PPS input/loop out
 DVB-T2 RF output
 Supports single PLP, multi-PLP (Option)
 Support MISO and SISO
 Support QPSK/16QAM/64QAM/256QAM (normal or rotated)
 Support TS format: T2-MI (Option) or TS (Mode A)
 High performance output: MER>43dB, shoulder level>56dB
 Output signal bandwidth: 5M, 6M, 7M, 8MHz
 Support MFN and SFN (Option) net mode
 Supports non-linear and linear digital pre-distortion (DPD) --->Video
 RF output level: -25~+3 dBm, 0.1db stepping
 Constant temperature crystal oscillator, as high as 0.1ppm stability
 Support online upgrade
 Keyboard operation and LCD display
 Web Network management system (GUI)
