COL-7101HW

  Single Channel HDMI

  IPTV Encoder

  With Wi-Fi

  HDMI & AV input

  IP output

spade spade

  Outline

COL-7101HW single channel HDMI&WIFI IPTV encoder is most competitive cost and easy-to-use video streaming appliance designed for professional video producer. The product support 1 channel HDMI & AV video capture generating dual stream of h.264 encoding output and the AAC audio format. From any HDMI or AV input source such as a camera or switcher, it generates an H.264-encoded stream compliant with RTSP, HTTP, UDP and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

  Standard Features

 Encoding specification: Baseline Profile / Main Profile / High profile
 Supports a click to restore the default configuration
 Supports STB decoding
 Supports Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
 Supports multiple devices display at the same time on a computer
 Supports network directly connected, don’t need match HD collection card.
 Providing RTSP/RTP/HTTP/RTMP/UDP protocol
 Supports H.264 Main Profile/H.264 High Profile and AAC audio
 Web control interface
 Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
 Power less than 24W, low power watts designing.
 Support Network interface full-duplex mode 1000M

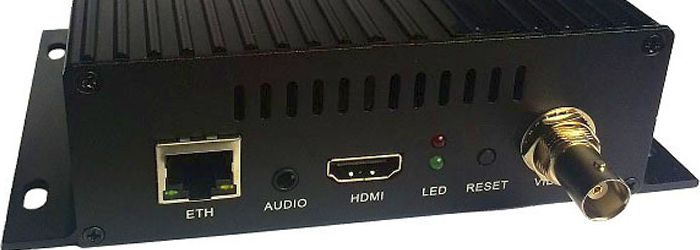

  Connections

  Application

 IPTV digital headend
 Accessed NVR for DVR
 Internet conferencing system video capture
 Remote education video system
 Hotel TV System
 Hospital, Bank, transport agency system

  Specification

   Video
 Input: 1 channel HDMI &AV input, supports HDCP
 Resolution: 1920x1080 / 1280x720 / 1280x1024 / 1280x960 / 704x576
 Encoding: H.264/AVC High Profile Level 4.0(HMDI)
 Video Bitrate: 0.8Mbps~12Mbps
 Bitrate mode: CBR/VBR
 GOP type: Adjustable
 Video pre-processing:De-interlacing, noise reduction, sharpening

   Audio
 Encoding: AAC、MP3
 Resample Rate: Adaptive output sample rate (option) 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
 Sampling: 24 bit
 Bitrate: 64Kb/s~384Kb/s

   System
 RJ45: 1000M Ethernet port
 Protocol: HTTP, UDP, RTSP, RTMP, ONVIF
 Configuration interface: WEB interface
 Upgrade: Software upgrades can be carried out through a network

   Environment
 Dimensions: (W×D×H): 146mm x 100mm x 45mm
 Net Weight: 0.5KG
 Temperature: 0~45°C (work), -20~80°C (Storage)
 Power Requirements: 12V / DC
 Power consumption: 5W
