COL-8101H

  Single Channel

  HDMI IPTV

  Encoder

  With Wi-Fi

spade spade

  Outline

COL-8101H single channel HDMI IPTV encoder is most competitive cost and easy-to-use video streaming appliance designed for professional video producers . The product support 1 channel HDMI & 1 audio input, Encoding out dual stream of h.264 with MP3/ AAC audio format. From any HDMI input source such as a camera or switcher, it generates an H.264-encoded stream compliant with RTSP, RTP, HTTP, UDP and RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

  Standard Features

 1 channel HDMI & 1 audio input
 Supports HLS & SDK
 Supports APP on Mobile phone
 Supports Wifi & auto research hot spot (optional)
 Supports lithium Battery (optional)
 Supports non-signal encoding
 Supports TS with Audio Alone
 Low power consumption design
 Up to 720P, 1080P HD video input
 System supports Windows XP/Vista/Server2003/Server2008/Win 7 32 and 64 Bit & Linux
 Supports MP3 and AAC audio format selection
 Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
 Supports a click to restore the default configuration
 Supports STB decoding
 Supports Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
 Supports multiple equipments display at the same time on a computer
 Supports network directly connected, dont need match HD collection card.
 Providing RTSP/RTP/HTTP/RTMP/UDP protocol
 Supports H.264 Main Profile/H.264 High Profile and AAC audio.
 Web control interface
 In compliance with CBR/VBR 16KBIT/S~12MBIT/S standard

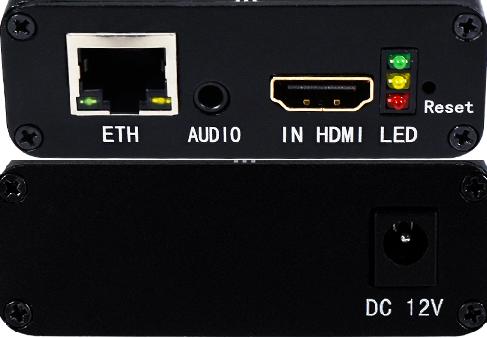

  Connections

  Application

 IPTV digital headend
 Encoding programs to YouTube
 Internet conferencing system video capture
 Remote education video system
 Hotel TV System
 Hospital, Bank, transport agency system

  Specification

  Video:
 Input: 1 channel HDMI input
 Resolution: 1920x1080p / 1920x1080i / 1280x720p / 720x576i / 720x576p / 640x480i
 Encoding: H.264/AVC High Profile Level 4.0(HMDI)
 Video Bitrate: 0.8Mbps~12Mbps
 Bitrate mode: CBR/VBR
 GOP type: Adjustable
 Video preprocessing: De-interlacing, noise reduction, sharpening
 OSD: Image, word

  Audio:
 Encoding: AAC、MP3
 Resample Rate: Adaptive output sample rate (option): 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
 Sampling: 32000,44100,48000
 Video Bitrate: 0.8Mbps~12Mbps
 Bitrate: 64Kb/s~384Kb/s

  System:
 RJ45:1000M Ethernet port
 Protocol:HTTP, UDP, RTSP, RTMP, ONVIF
 Configuration interface:WEB interface
 Upgrade:Software upgrades remoted

  Environment:
 Dimensions:(WDH): 146mm x 100mm x 45mm
 Net Weight:0.5KG
 Temperature:0~45C (Work), -20~80C (Storage)
 Power requirements:12V -2A
 Power consumption:5W
