DVBit-DV18IH

1x8 HDMI 2.0b Splitter

Support 3D 4k@60HZ YUB 4:4:4/b>

EDID,HDR, HDCP2.2

spade spade

  Introduction:

1x8 HDMI 18Gbps Splitter is an advanced solution for splitting a single HDMI signal to 8 HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss.(Supporting the latest features you can be assured of reliable and high quality HDMI distribution.)

  Features:

  HDMI 2.0b, HDCP 2.2 compliant.
  Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2.
  Support 3D frame sequential video format up to 1080p@60;
  Supports 3D frame sequential video format up to 4K2K@30Hz.
  Supports high resolution VESA mode video format up to QSXGA @60Hz.
  Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.
  Supports smart EDID control.
  Compact design for an easy and flexible installation.

  Specifications:

Technical:
  Video Bandwidth: 600MHz/18Gbps
  Input Ports: 1HDMI Type A[19-pin female]
  Output Ports: 8HDMI Type A[19-pin female]
  Output Resolution: 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
  ESD Protection: Human Body model: 8kV (Air-gap discharge) , 4kV (Contact discharge)
  Power Supply: 5V/2A DC (US/EU standards,CE/FCC/UL certified)
  Dimensions: 243mm (W) 102mm (D) 16mm (H)
  Weight: 572g
  Chassis Material: Metal
  Silkscreen Color: Black
  Operating Temperature: 0C ~ 40C / 32F ~ 104F
  Storage Temperature: -4 - 140F / -20 - 60C'
  Relative Humidity: 20~90% RH (non-condensing)
  Power Consumption: 6.15W

  Connections:

spade

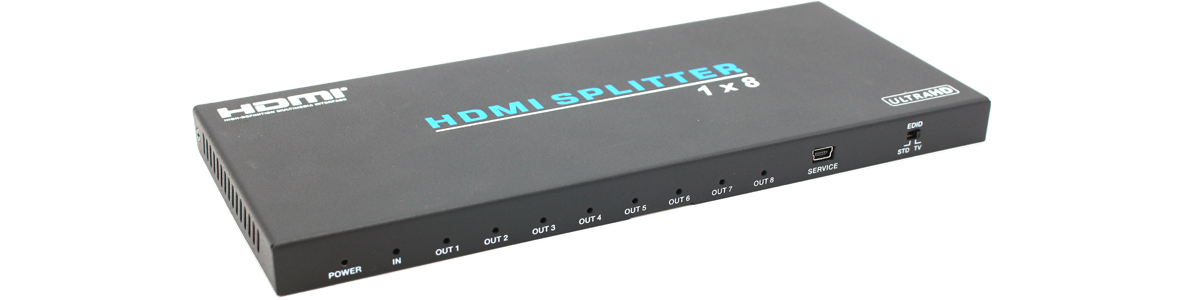

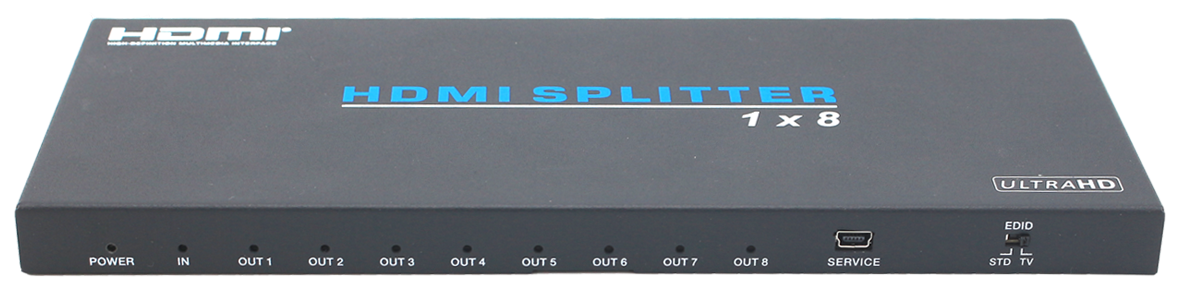

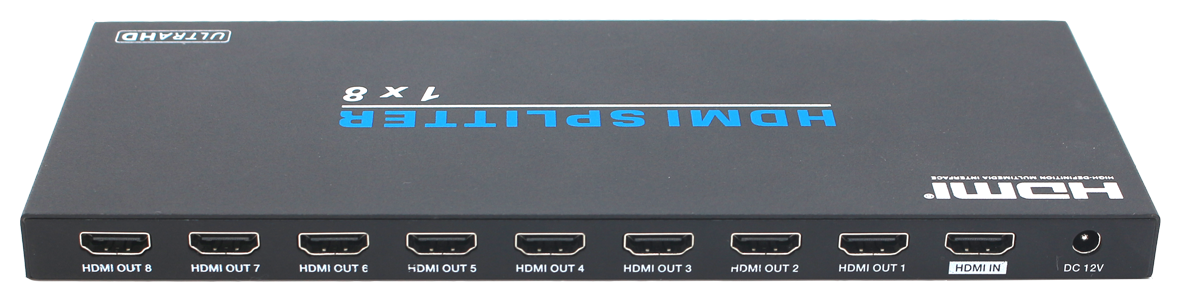

  Photo Gallery:







spade
spade spade spade
