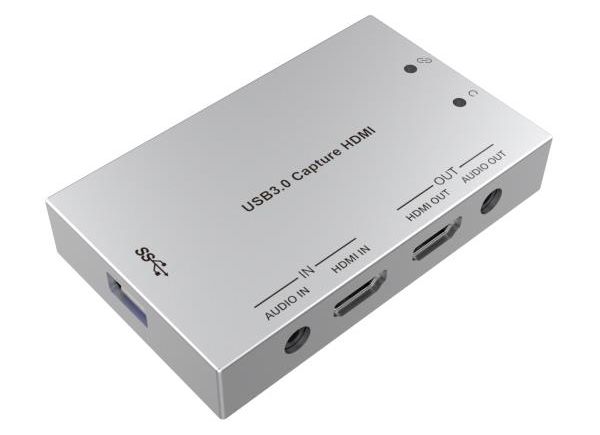

This product has a superior performance, superior compatibility, easy to carry, simple installation. It can capture HDMI video input signal. It supports external analog audio input and can be selected analog or digital audio signal to capture. This product supports HDMI loop out and analog stereo audio extract output from HDMI source, capture video resolution the maximum up to 1080p60Hz. It compatibles USB3.0 chipset (Intel, Renesas, ASMedia, Fresco Logic etc.), compatible with PCIe Gen 1.1 x1 expansion via USB3.0 interface. The product meets UVC and UAC standard. Simple plug and play, no driver and setting installation required.

  Feature:s

  Supports HDMI video input capture and HDMI loop output.
  Supports resolution 480i~1080p60Hz format video capture.
  Supports resolution 4K2K@60Hz (Down Scaler)->1080p60Hzvideo capture. (Attention: 4K2K@50/60Hz 4:2:2 resolution notsupported down scaler function.)
  HDMI input and HDMI loop output supports HDMI 2.0, HDCP 2.2,resolution the maximum up to 4K2K@60Hz(4:4:4).
  Supports analog stereo audio input. (Double audio inputs selected to capture audio.)
  Supports analog stereo audio extract output from HDMI source.
  Compatibles Windows, Linux, OS X operating systems.
  Compatibles USB3.0 about transmission rate up to 300~350MB/s.
  Compatibles VLC, OBS, XSPLIT and AMCAP etc. PC capture software.
  Simple plug and play, no drive and setting installation required.

  Specifications:

Technical:
  Input ports: 1×HDMI IN [19-pin female], 1×AUDIO IN [3.5mm Stereo Mini-jack]
  Output ports: 1×USB [USB Type A, USB3.0—300~350MB/s], 1×HDMI OUT [19-pin female], 1×AUDIO OUT [3.5mm Stereo Mini-jack]
  HDMI input resolution: Up to 4k2k@60(4:4:4) (Attention: 4k2k@50/60Hz 4:2:2 not supported down scaler function.)
  HDMI output capture resolution: 640×360, 640×480, 720×480, 720×576, 800×600, 856×480, 960×540, 1024×576, 1024×768, 1280×720, 1280×1024, 1280×960, 1280×800, 1368×768, 1440×900, 1600×1200, 1680×1050, 1920×1080
  HDMI loop out resolution: Up to 4k2k@60(4:4:4)
  Frame Rate: 25/29.97/30/50/59.94/60fps
  Audio and video capture: UVC (USB video class) and UAC (USB audio class) standard
  Supports OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)
  Software compatibility: OBS (Windows), Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows,OS X) and Potplayer (Windows) etc.

Mechanical:
  Housing: Metal Enclosure
  Dimensions: 98mm [W] x 60mm [D] x 17mm [H]
  Net Weight: 125g
  Power Consumption (Max): 3.4W
  Operation Temperature: 0 - 40°C (32 - 104°F)
  Storage temperature: -20 - 60°C (-4 - 140°F)
  Relative Humidity: 20 - 90% RH (no condensation)

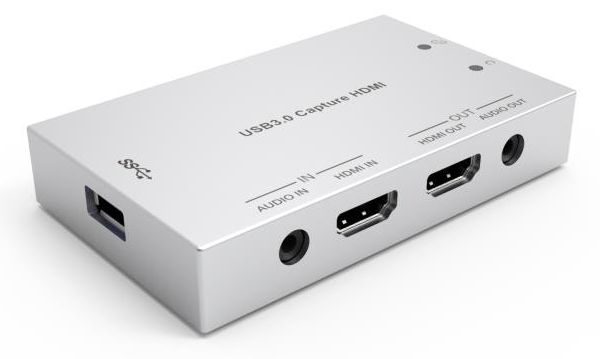

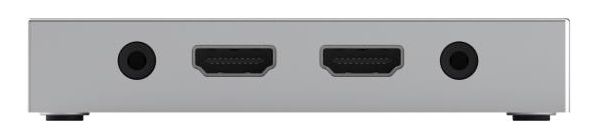

  Connections:

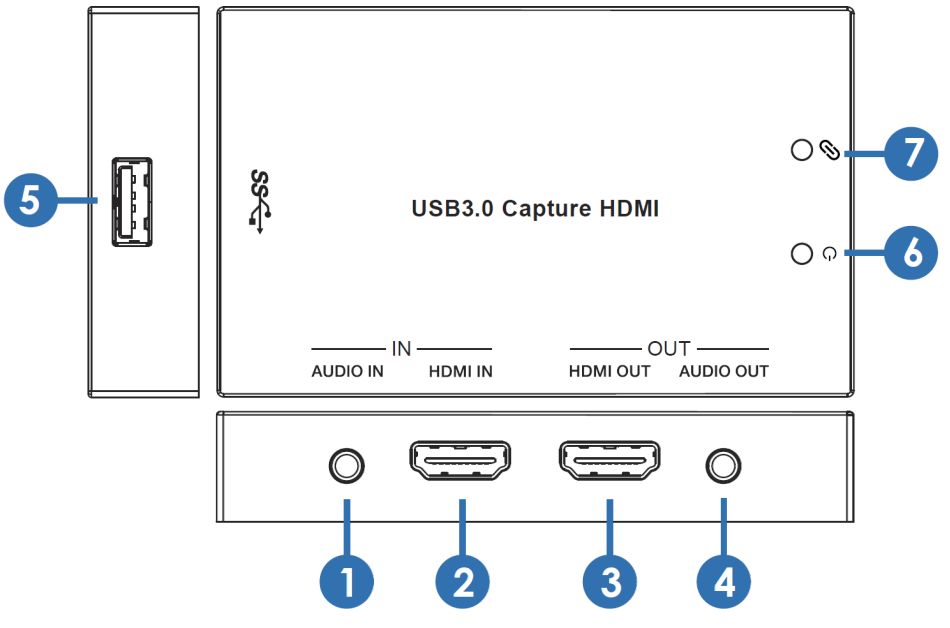

  1. Audio In: Audio input port, connect to external analog stereo audio input such as moble phone or DVD.
  2. HDMI In: Connect to HDMI source device such as DVD or PS4 player by HDMI cable.
  3. HDMI Out: HDMI loop output port, connect to HDMI display device such as TV by HDMI cable.
  4. Audio Out: Audio output port. (This port output signal from HDMI IN audio source.)
  5. USB 3.0 Capture Out: USB3.0 capture output port, connect to PC or NoteBook for capturing video.
  6. Power Indicator: This LED will illuminate when the device has connected PC’s or NoteBook’s USB port.
  7. Action Indicator: This LED will illuminate when the device capture video normally.
