PUS-B200S

  Integrated Video Camera

  1/2.8" Exmor CMOS

  20X Optical Zoom

  2.38 MegaPixel

  Video Output: 3G-SDI

spade spade

  Outline

B200 is a high-definition integrated camera, using advanced image processing algorithms and high-quality HD CMOS sensor, motion estimation algorithm based on 2D / 3D digital noise reduction, low-Illumination with clear image, support for multi- interface video output, Easy for using. Mainly used in Education, Video Conferencing, Interrogation, CCTV, intelligent transportation, Medical.

  Standard Features

   Widely application
 Ideal for video conferencing, government, court, educational environment, Remote learning, corporate training, remote medical and Internet communication
   Multiple Video format
 Built-in in Multiple Video format output 1080P@60/50/30/25fps,1080I@60/50/30/25, 720P@60/50
   Remote communication
 Support RS-485 /RS232 serial Remote controls to setting the camera parameter
   AUTO AE/FOCUS/IRIS
 Focus on image Intelligent, with Auto White Balance, Auto Iris, Auto Focus function
   20X Optical zoom with Horizontal of view 65
 The camera with 1/2.8" SONY CMOS SENSOR, 20X Optical zoom, the wide of horizontal of view up to 65
   Diversified installation
 Standard mounting and ceiling mounting with Flip & Mirror function
   Intelligent OSD Menu with five direction button
 The camera with OSD menu by five direction buttion, simple and user-friendly
   H.265/H.264 Encoding
 H.265 encoding support, enabling full HD 1080p video stream by ultra-low bandwith
   2D/3D Norised Reduce
 The camera can support 2D/3D Norise reduce function

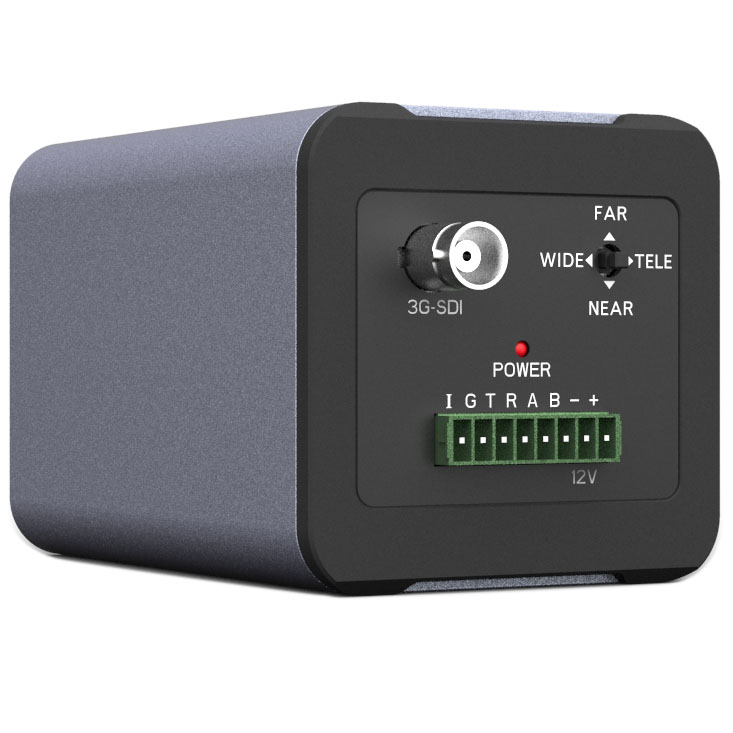

  Connections

  Specification

   Camera Specs:
 1/2.8" Exmor CMOS Sensor, 2.27 Megapixel
 Frame Rate 1080P60/50/30/25,1080I60/50/30/25;720P60/50
 Zoom: 20X Optical , 12X Digital Zoom
 Lens: f=4.7mm-94.0mm, F=1.6(W)-3.5(T)
 Horizontal Field of View 2.9(T)-65(W)
 Zoom Control VISCA, PELCO D/P

   Input/Output Interface:
 Video Output: 3G-SDI
 Power On: JEITA type (DC IN 12V)
 Communication interface: RS485 /RS232

   Generic:
 Dimensions (W x H x L) 70mm x 70mm x 122mm
 Weight 0.2kg
 Operating Temperature -10C ~ 50C
 Max Comsunption: 12W DC12V @1A

   Packing Box:
 1x B200 Camera
 1x User Manuel
 1x User Manuel
 1x 12V/ 2.0 A DC Power Adapter
 1x Power Cable
