Outline

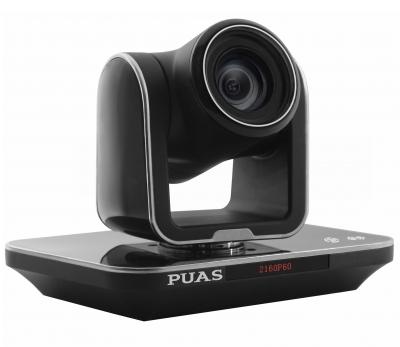

UHD320N is a Professional 4K broadcast-Grade video PTZ camera with Ultra HD Sony CMOS, maximum resolution up to 3840*2160@30fps; it's 4K extreme picture presentation, color true, image quality Clear & support USB local storage function, one-click recording and SDI\HDMI\IP Streaming video simultaneous output.H.265 super decoding, 1080P low bandwidth transmission,built-in audio interface, suitable for high frequency sound live broadcast and AV video recording. Support VISCA / PELCO P / D, ONVIF multiple protocols & application widely, suitable for LIVE Streaming & Broadcasting, Conferencing, Education, Telemedicine, AV Media Solution project.

  Standard Features

   Ultra HD 4K Image
 The camera with SONY 1/2.8" inch, effective pixels high quality UHD CMOS sensor, can reach 4K (3840x2160) resolution and achieve quality image, downward compatible with 1080P and 720P, etc.
   Multiple Protocols
 Built-in VISCA, PELCO P/D, ONVIF
    Simultaneous multi-interface video output
 It can support 3G-SDI / HDMI / IP Streaming (RTSP, RTMP)
   Remote Control
 Support RS485 / RS232 / LAN (VISCA Over IP) & Remote Controller to communication & control Camera.
   Ultra-quite Hardware structure design with High Accuracy up to 0.01°
 Ultra-quiet pan/tilt design, horizontal ±178 degrees, vertical -30°~+90° rotation.
 All-aluminum compact structure design, imported high precision Stepper motor drive, accuracy 0.01°
   Support Audio Input
 Built-in 3.5mm Jack audio input interface & G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
    IP Streaming
 TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, SNMP, FTP(Optional)
   Local Audio & Video Storage
 Support USB2.0 Port Local Storage & recording & One-clicked to starting
   Smart Menu & GUI Interface
 Easy to enter Menu & setting, The camera with self-developing Desk GUI Interface for Video Previews & changed the setting
   20X Optical Zoom with wide horizontal of view 65°
 The camera with advanced video image processing technology & full HD 1/2.8" CMOS Sensor, 20X Optical Zoom,Max resolution up to 1080P@60fps
   2D/3D Noised Reduce function
 The Camera memu can easy to setting & changed the 2D/3D Noised reduce according to difference sence
   Multiple video output formats
 The Camera video output format can available for 1080P60/50/30/25,1080I60/50fps/30/25; 720P/60/50 to meet different Video Conferencing Software & Terminal demand
   Diversified installation design
 The image can support Mirror & Flip, it can support Ceiling / Wall Mount / Tripod / Desk etc Installation

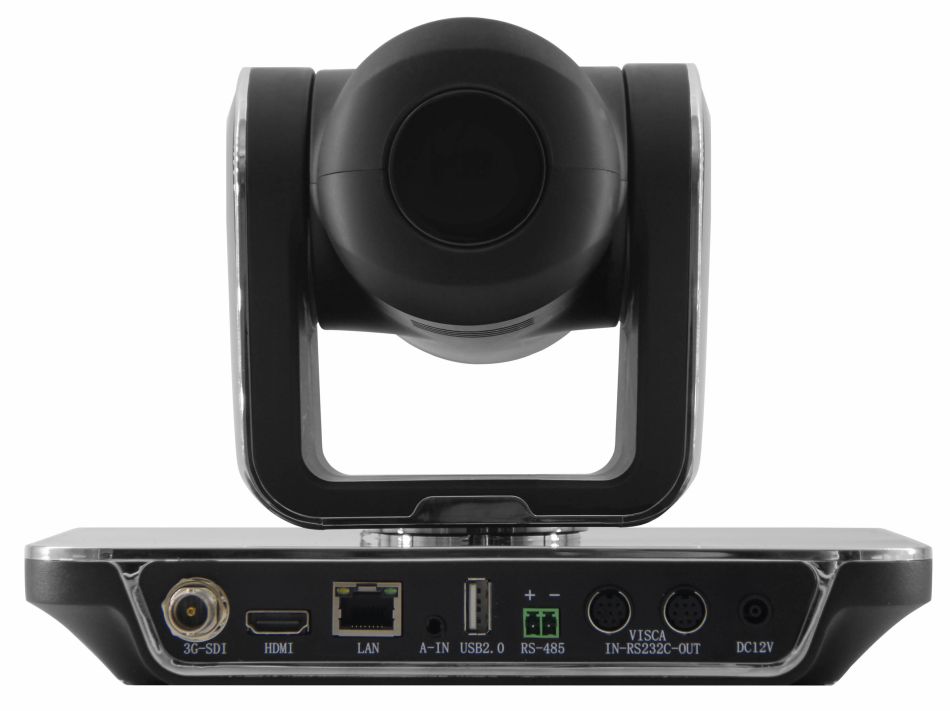

  Connections

  Specification

   Camera Specs:
 1/2.8" Exmor CMOS, 2.38 Megapixel
 Frame Rate 3840*2160P30/25;1080P60/59.94/50/30/29.97/25;1080I60/59.94/50/30/29.97/25;720P60/50/30/25, 480I60, 576I50
 Zoom: 20X Optical, 12X Digital Zoom
 Lens: f=4.7mm -94.0mm, F=1.6 (W) -3.5 (T)
 Horizontal Field of View 2.9° (T) - 65°(W)
 Min Lux 0.5lux/0.095 lux
 Shutter Speed 1 to 1/10000s
 Vertical Flip & Mirror Supported

   Input/Output Interface:
 Video Output: HDMI, 3G-SDI, IP Streaming (10/100M Adaptive Ethernet ports)
 Audio Input: 1-ch 3.5mm audio interface, Line In
 Communication interface: 1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
 Power On: JEITA type (DC IN 12V)
 Video Storage: USB2.0

   Mechanical:
 Pan Rotation Angle ±178°, Tilt Rotation Angle -30°~ +90°
 Pan 0.1~180°/s; Tilt: 0.1~120°/s
 Max 255 Presets (Remote 9 Presets)
 VISCA, PELCO P/D, ONVIF Proto

   IPC Video Features:
 Video standard: H.265/H.264/MJPEG, H.264 HP, H.264 SVC, H.263 +, H.263, H.261 Dual video streams H.239BFCP content exchange
 Video Stream: Main stream, Sub stream
 Main stream resolution: 3840*2160; 1920x1080, 1280x720
 Sub stream resolution: 1920*1080; 720x480, 320x240
 Bit Rate: 128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
 Bit Rate Type: Variable rate, Fixed rate
 Maximum Frame: 60fps
 Audio encode standard: G.711, G.722, G.722.1, G.728, G.722.1C AAC
 Audio stream rate: 96K, 128K, 256K
 Support protocols: TCP/IP, HTTP, DDNS, RTSP, RTMP, SMTP, UPnP, SNMP, UDP, FTP (Optional)
 High Efficiency Lost Packet Recover
 Wake-on-LAN (WOL) support

   Generic:
 Dimensions (Length x Width x Height) 220mm x 154mm x 181mm
 Gross Weight 1.6kg
 Operating Temperature -10°C ~ 50°C
 Max Comsunption: 12W DC12V @1A

   Packing Box:
 1x HD320 PTZ Camera
 1x User Manuel
 1x 12V/ 2.0 A DC Power Adapte
 1x IR Remote Controller
 1x Ceiling Bracket / Wall Support
 1x RS-232 to DB 9pin cable
