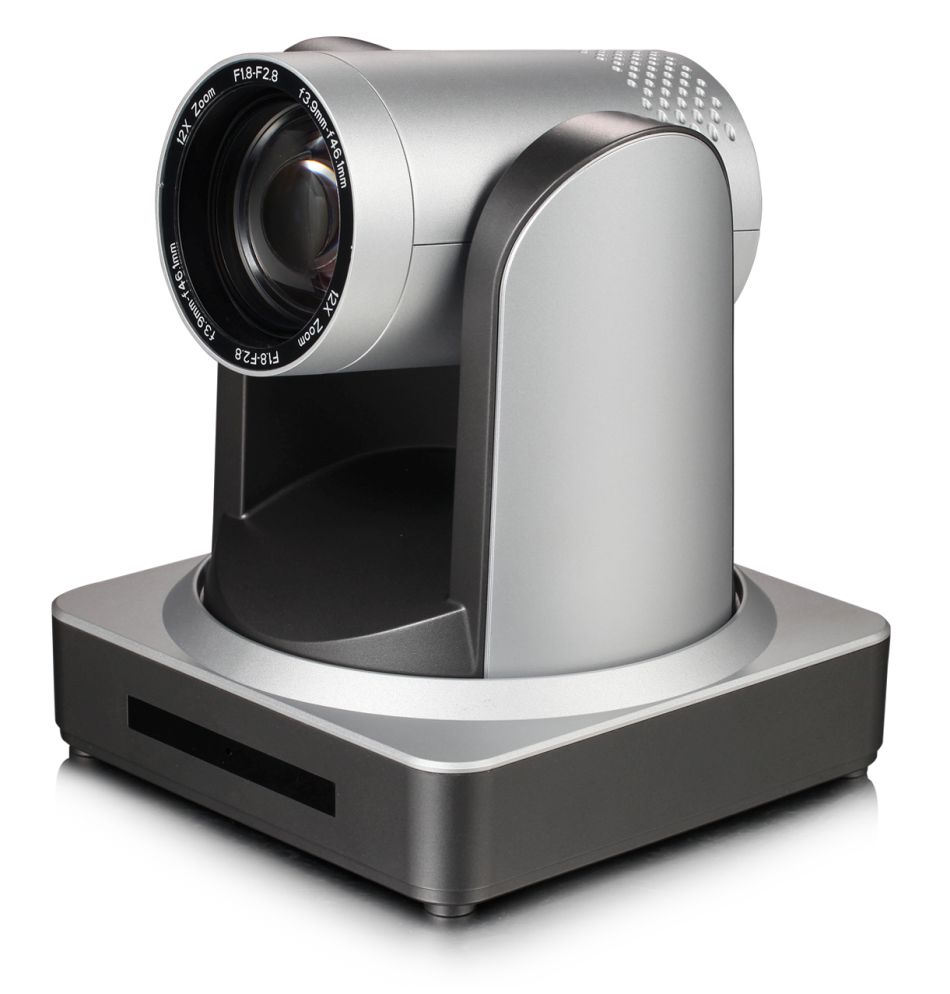

UV510A-20-ST

 Video Conference Camera

 Full HD

 Wide View Angle

 Multi-protocols

 Multiple Video Interfaces:

 HDMI, 3G-SDI, LAN, A-IN,

 RS232 (in & out) & RS485

spade spade

  Outline

The UV510A series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.

  Key Features

 Superb High-definition Image
   UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 19201080 with frame rate up to 60fps.
 Leading Auto Focus Technology
   Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
 Low Noise and High SNR
   Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
 Audio Input Interface (for future development)
   Support16000,32000,44100,48000sampling frequency and AAC,MP3,PCM audio coding.
 Wide-range, Quiet and Quick Pan/Tilt Mechanism
   By adopting step driving motor mechanism, UV510A camera works extremely quiet and moves smoothly.
 Multiple Audio/Video compression
   Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 19201080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
 Multiple Network Protocol
   Support ONVIF, RTSP, RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
 RS-232 Cascade Function
   Support RS-232 cascade function which is convenient for installation.
 Wide Application
   Tele-education,lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
 Low-power sleep function
   Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

  Connections

  Specification

   Camera Parameter:
 Optical Zoom: 20X f=5.2~98mm
 Sensor: 1/2.8 inch high quality HD CMOS sensor
 Effective Pixels: 16: 9, 2.07 megapixel
 HDMI/SDI/HDBaseT video format:
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
 USB3.0 interface video format
1) U3: 1920X1080P60/50/30/25;1280X720P30/25/15/10 ;960X540P30 ;640X360P30
2) U3 compatible with U2: 960X540P30;640X360P30;1280X720P10/15;720X576P30;720X480P30
 USB2.0 interface video format:
176144/320240/320180/352288/640480/720480/720576/640360
800X600/960X540/1024X576/1024X768/1280X720/1920X1080 P30/25/20/15/10/5
 View Angle: 3.3(tele)54.7(wide)
 AV: F1.6 F3.5
 Digital Zoom: 10X
 Minimum Illumination: 0.5Lux (F1.8, AGC ON)
 DNR: 2D & 3D DNR
 White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
 Focus/Aperture/Electronic Shutter: Auto/Manual
 BLC: ON/OFF
 WDR: OFF/ Dynamic level adjustment
 Video Adjustment: Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve
 SNR: 55dB

   Input/Output Interface:
 Video Interfaces: SDI, HDMI, LAN, RS232 (In & Out), RS485, A-IN
 Video Compression Format: H.264, H.265, Dual stream output
 Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
 Audio Input Interface: Double track 3.5mm linear input;
 Audio Compression Format: AAC/MP3/PCM Audio compression
 HD IP Interface: 100M IP Port(100BASE-TX); Support VISCA protocol control through IP port.
 Network Protocol: RTSP, RTMP, ONVIF, GB/T28181
 Power Interface: HEC3800 Outlet (DC12V)

   PTZ Parameter:
 Pan/Tilt Rotation: 170,-30~+90
 Pan Control Speed: 0.1 60/sec
 Tilt Control Speed: 0.1 30/sec
 Preset Speed: Pan=60/sec, Tilt=30/sec
 Preset Number: 255 presets (10 presets by remote controller)

   Other Parameter:
 Supply Adapter: AC110V-AC220V to DC12V/1.5A
 Dimension: 150mmX150mmX167.5mm
 Weight: 1.4KG
 Remote Operation (IP): Remote Upgrade, Reboot and Reset

  Photo Gallery

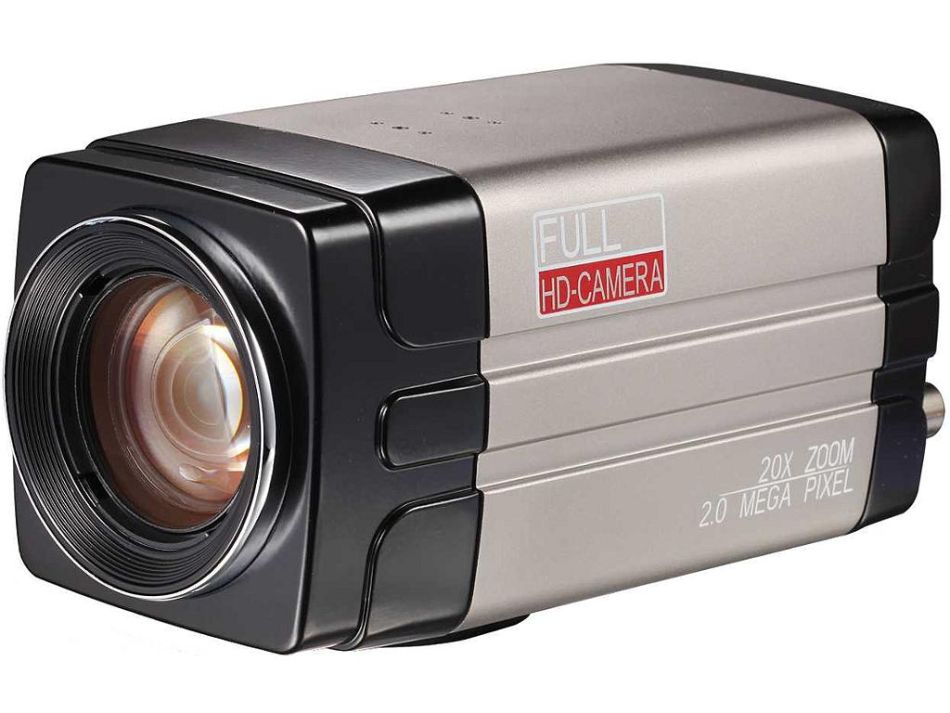

  UV1201S-SY20
