iStream On My Own!
No PC Needed, Stand alone Operation
TS Player & Recorder
DVB-ASI Input & Output
Free Application Software

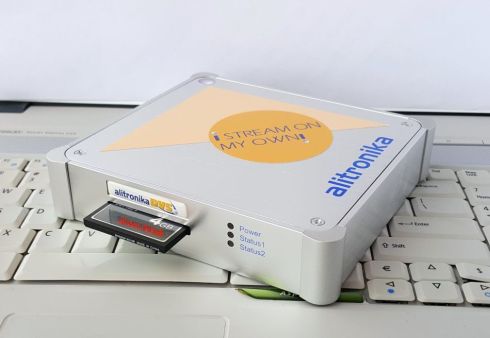

Combined DVB-ASI Player & Recorder Device.Ideal "Install & Forget" TS Server for 24/7 care free operation.

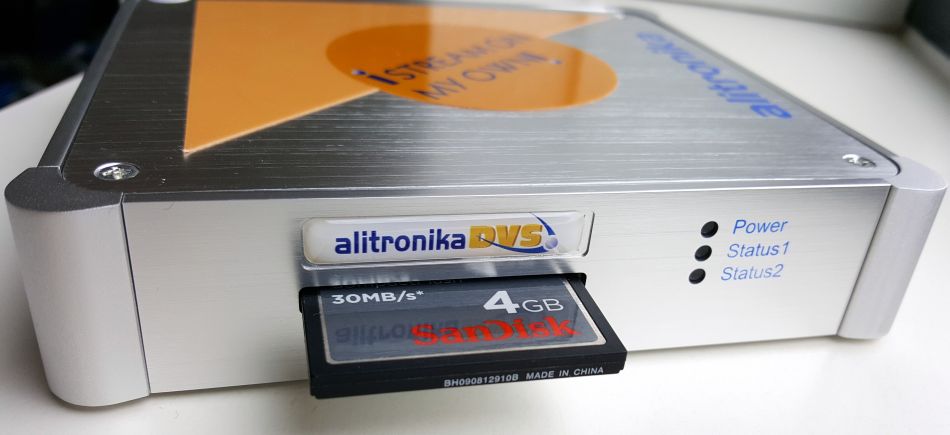

Ideal solution for all applications. When connected to a PC/Laptop, the AT140USB operates just like a standard DVB-ASI TS player & recorder. In stand alone mode of operation, the AT140USB does not need a PC. Transport Streams could be played back from or recorded onto the ON-BOARD Compact Flash Memory device. A Micro-Processsor operating on embedded software, does the job of the PC/Laptop.

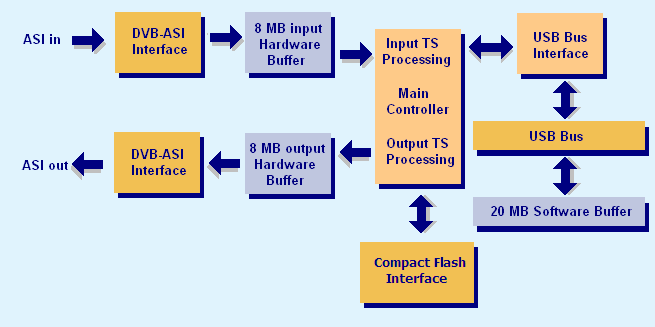

How does it all work ? When Playing or Recording Transport Stream using Alitronika's devices, hardly any processing power is needed.
This is due to the fact that Alitronika's devices are real hardware based devices so the hardware carries out all the functions.
This is in contrast to devices supplied by others vendors, often re-branded devices with addition of their application software.
By adding the extra processing power needed, the AT140USB is capable of playing back any TS files of up to 50Mb/s.
The TS files for play back could be recorder on the Compact Flash device in 3 ways :
- by connecting a DVB-ASI stream to DVB-ASI input of AT140USB,
- using DVSStation3, Alitronika's FREE application software,
- or simply by placing the Compact Flash device in any Flash Reader Port of a PC/Laptop and just copying the files onto it.
Integrated Loop Through output.
Automatic Cable Equalization of up to 350m.
Supports True or Inverted ASI signals.
Carrier and Lock Detection.
Sync, Error & Code Violation Detection.
PID filtering by Hardware.
PCR Time stamping by Hardware.
Programmable Output Bit Rate.
Can play Higher Bitrate then the TS file.
Can output True and Inverted signals.
Supports Burst Mode, RAW Data Mode.
Null packet insertion by Hardware.
PCR, continuity counter correction.
Packet time and date correction.
Hardware Generated Null Packet or Counter Packet.
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT140USB is an ideal solution for a number of applications such as:
DVB to IP Gateway
Universal Interface for TS Processing
Video on Demand Server
Transport Stream Test Generator
High Speed Serial Data Link
Software Based MPEG2 Encoders/Decoders
On Board Buffer: 8 Mbytes

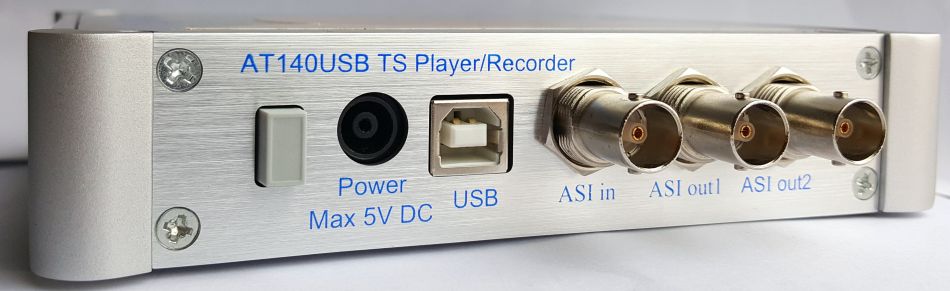

DVB-ASI Connector: 75 Ohms Mini BNC
Input Return Loss:>15 dB
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal
DVB-ASI I/O Bit Rate: 0 to 214 Mbit/s
Bit Rate Stability:
- Standard: +/- 25ppm
- Maximum: +/- 1ppm
DVB-ASI Output Clock: 270 MHz
Application Software:DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

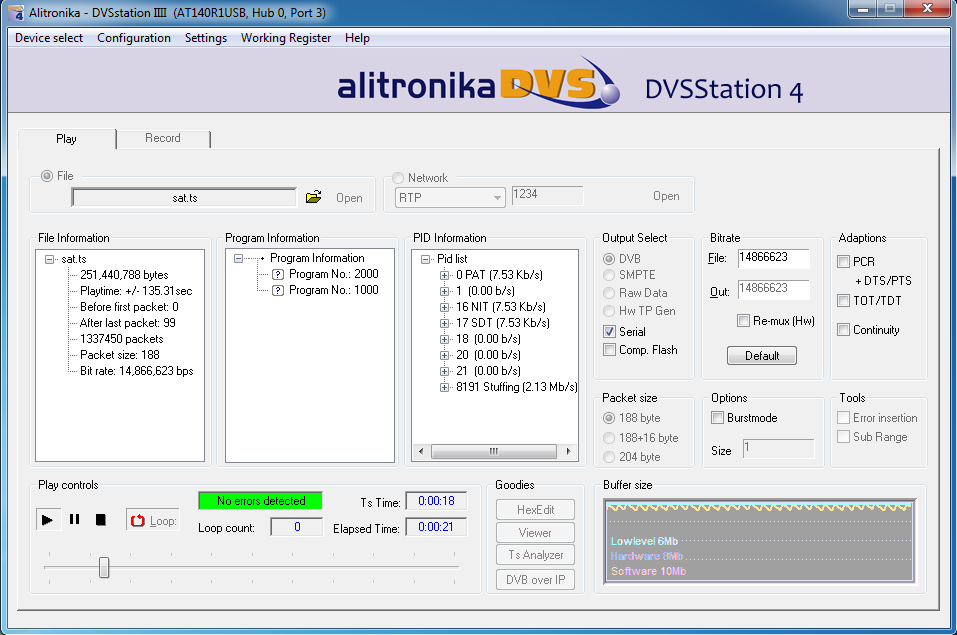

Play Screen=> In normal operating conditions

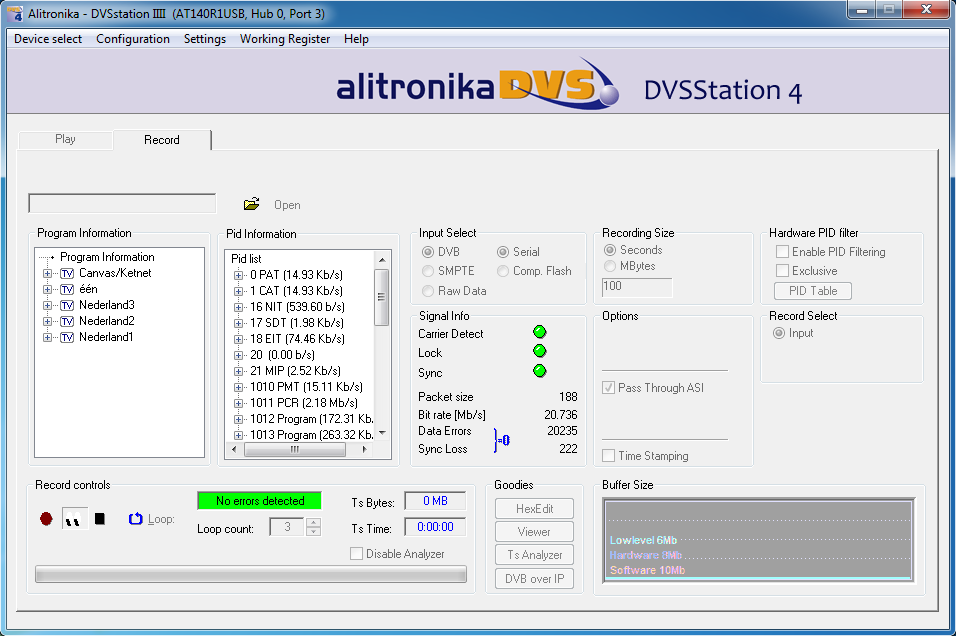

Record Screen => In normal operating conditions
The application software provides the user with many functions & features such as :
Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops.......
Hardware Working Regiters are accessable for monitoring
Among the "Goodies" are a Video Viewer
A DVB to IP Player/Converter
As well as the Integrated Quick TS Analyzer, TSReader support these devices.
