AT40USB
DVB Fantastic
TS Player & Recorder
DVB-ASI Input & Output
Powered from USB port
Free Application Software
|
 |
 |
|
|
|
|
| |
|
Standard Features:
Smallest DVB-ASI I/O Device in the world
High Speed USB 2.0
Windows Drivers & SDK
Linux Drivers
Free Application Software, DVSStation3
Supports DVB Standards A1010 Rev1 & EN50083
Supports 188/204 byte & Arbitrary Packet Sizes
Input
Integrated Loop Through output Automatic Cable Equalization of up to 350m Supports True or Inverted ASI signals Carrier and Lock Detection Sync, Error & Code Violation Detection PID filtering by Hardware. PCR Time stamping by Hardware Output
Programmable Output Bit Rate Can play Higher Bitrate then the TS file Can output True and Inverted signals Supports Burst Mode Null packet insertion by Hardware PCR, continuity counter correction Packet time and date correction Error insertion Hardware Generated Null & Counter Packet
Block Diagram:

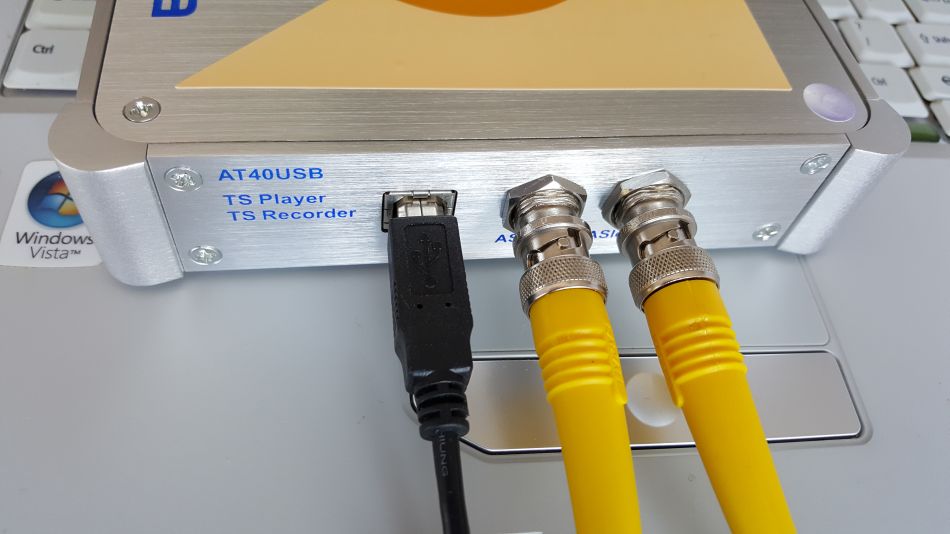

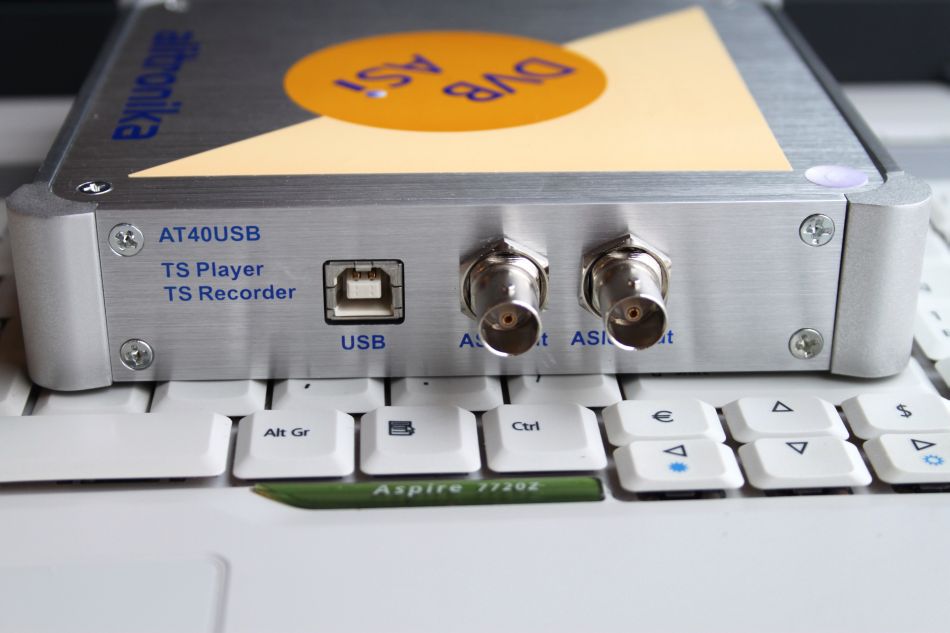

Connections:
Application:
Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT40USB is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
Universal Interface for TS Processing
Video on Demand Server
Transport Stream Test Generator
High Speed Serial Data Link
Software Based MPEG2 Encoders/Decoders
Specification:
On Board Buffer: 8 Mbytes
DVB-ASI Connector: 75 Ohms Mini BNC
Input Return Loss: >15 dB
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal
DVB-ASI I/O Bit Rate: 0 to 214 Mbit/s
Bit Rate Stability:
- Standard: +/- 25ppm
- Maximum: +/- 1ppm
DVB-ASI Output Clock: 270 MHz
| |
|
Application Software:
DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.Play Screen
Record Screen
PID Filtering
Bit, Byte & Packet error insertion
TOT & TDT selection
PlayBack in loops, sub-loops & more
Accessable Working Regiters
Among "Goodies" are: Video Viewer
Hex Editor
A DVB to IP Player/Converter
TSReader supports Alitronika's devices.
| |
|

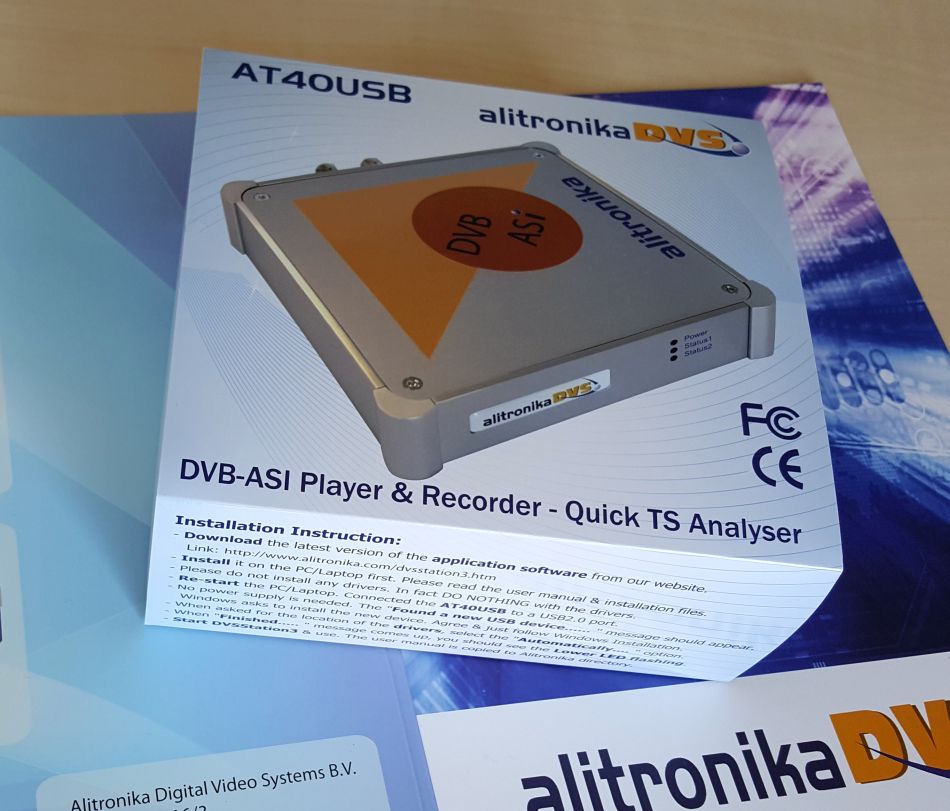

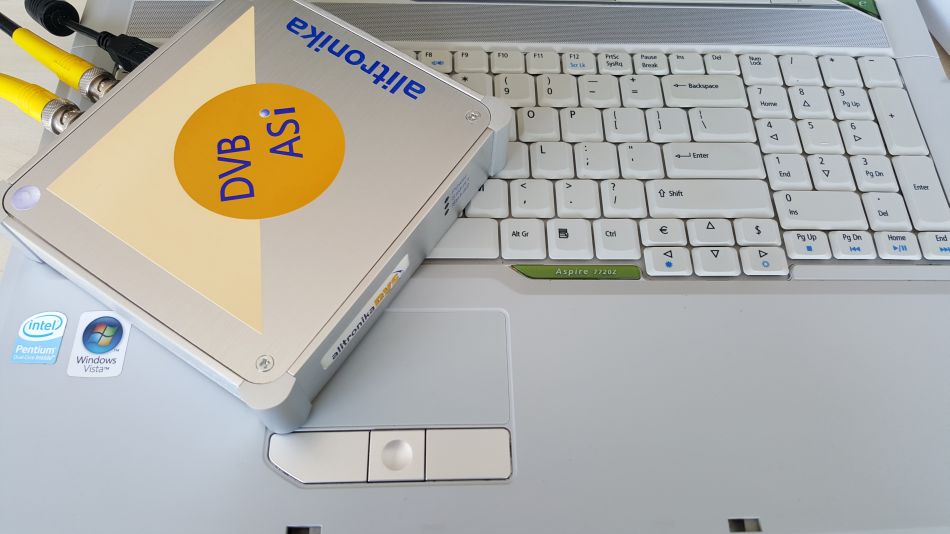

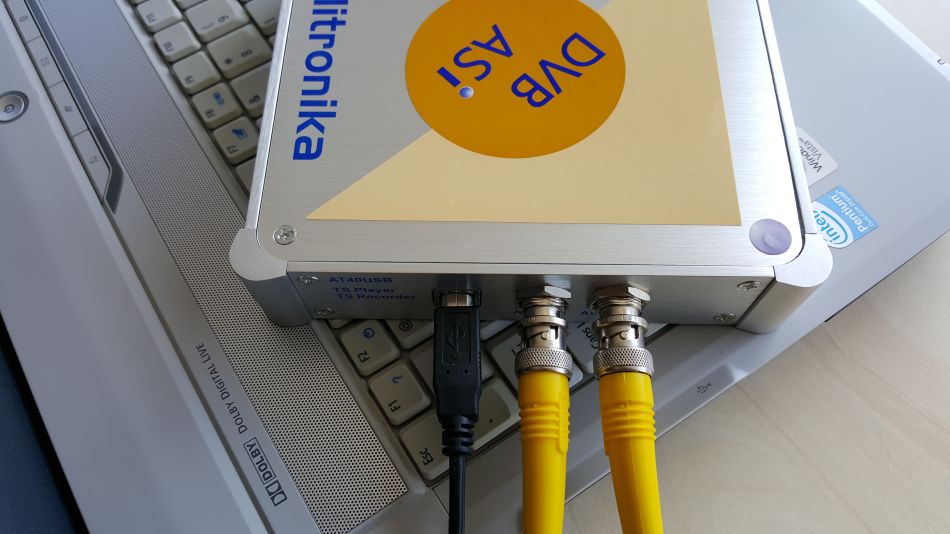

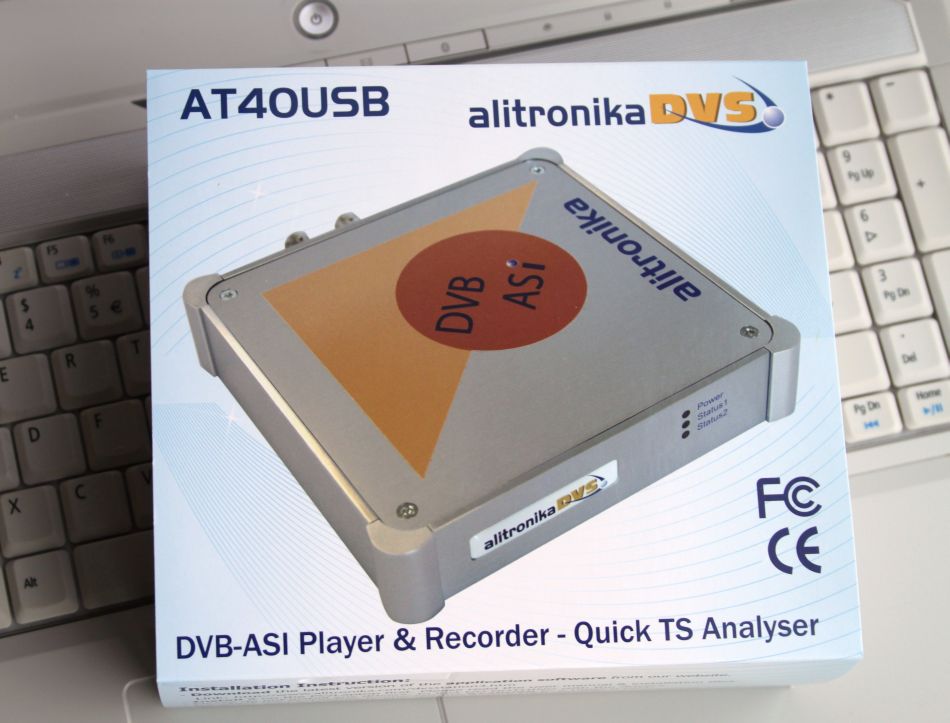

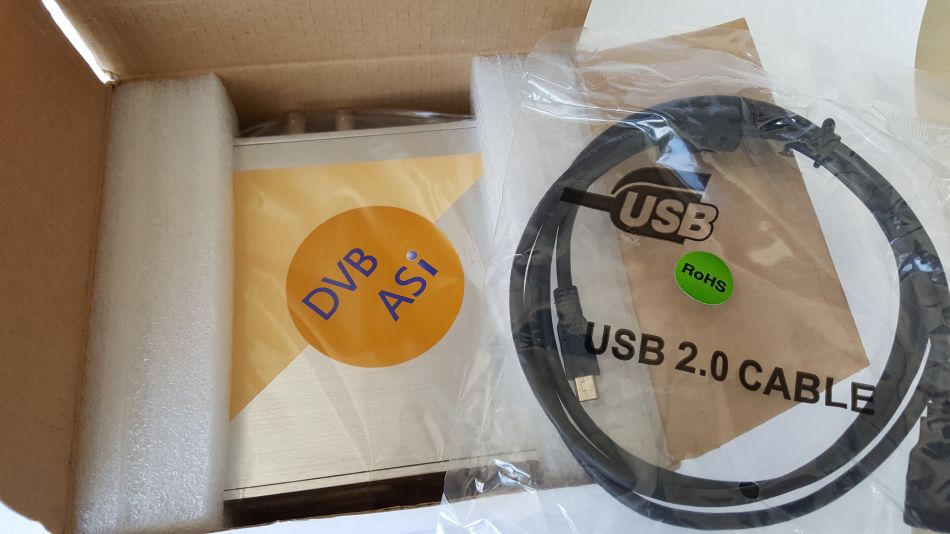

Photo Gallery:
