AT40XUSB

  i Do it All

  TS Player & Recorder

  DVB-ASI/SPI Input & Output

  Powered from USB port

  Free Application Software

spade spade

  Downloads:

spade spade

  Standard Features:

  The Ultimate Stream Player/Recorder
  Combines functions of 8 Devices
 1- TS Recorder, DVB-ASI to USB 2.0 Converter
 2- TS Player, USB 2.0 to DVB-ASI Converter
 3- DVB-SPI to USB 2.0 Converter
 4- USB 2.0 to DVB-SPI Converter
 5- SDI Recorder - SDI to USB 2.0
 6- SDI Player - USB 2.0 to SDI
 7- DVB-ASI to DVB-SPI Converter
 8- DVB-SPI to DVB-ASI Converter
 High Speed USB 2.0
 Windows Drivers & SDK
 Linux Drivers
 Free Application Software DVSStation3
 Supports DVB According to Standard A1010 Rev1 & EN50083
 Supports 188 & 204 byte or Arbitrary Packet Sizes
  Input
 Integrated Loop Through output
 Automatic Cable Equalization of up to 350m
 Supports True or Inverted ASI signals

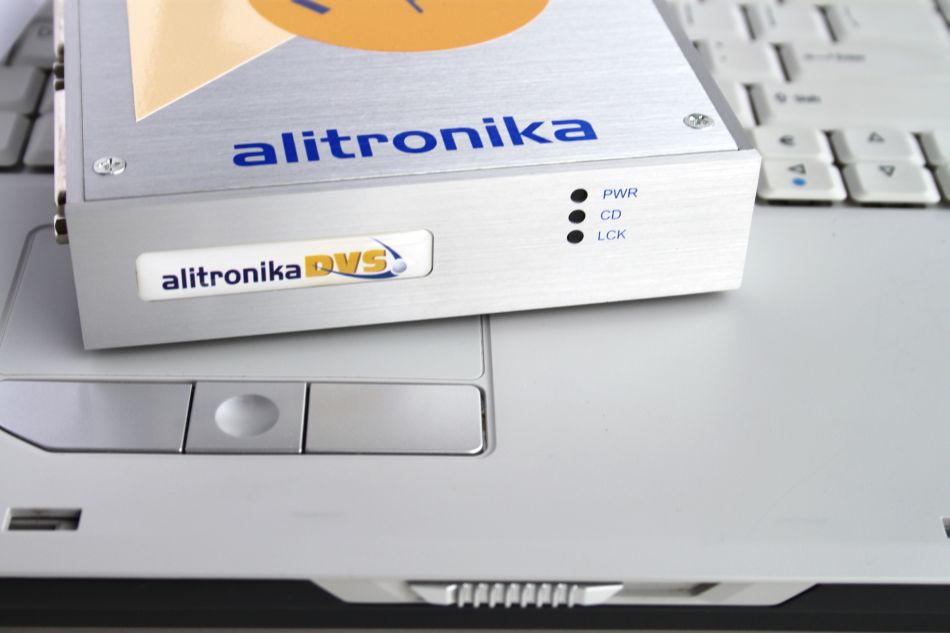

 Carrier and Lock Detection
 Sync, Error & Code Violation Detection
 PID filtering by Hardware
 PCR Time stamping by Hardware
  Output
 Programmable Output Bit Rate
 Can play Higher Bitrate then the TS file
 Can output True and Inverted signals
 Supports Burst Mode, RAW Data Mode
 Null packet insertion by Hardware
 PCR, continuity counter correction
 Packet time and date correction
 Error insertion
 Hardware Generated Null Packet or Counter Packet

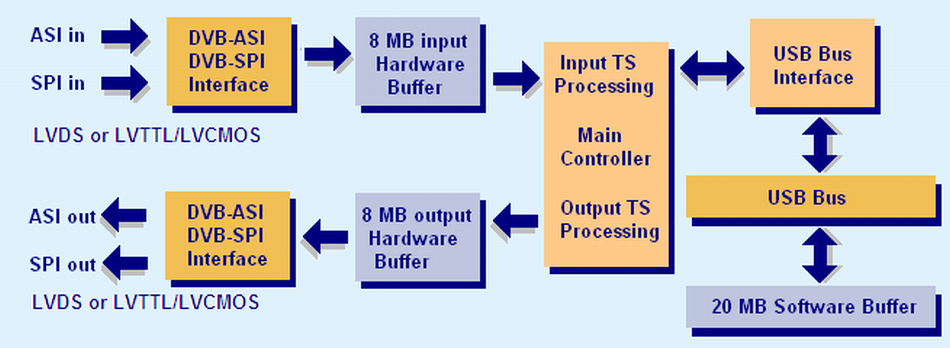

  Block Diagram:

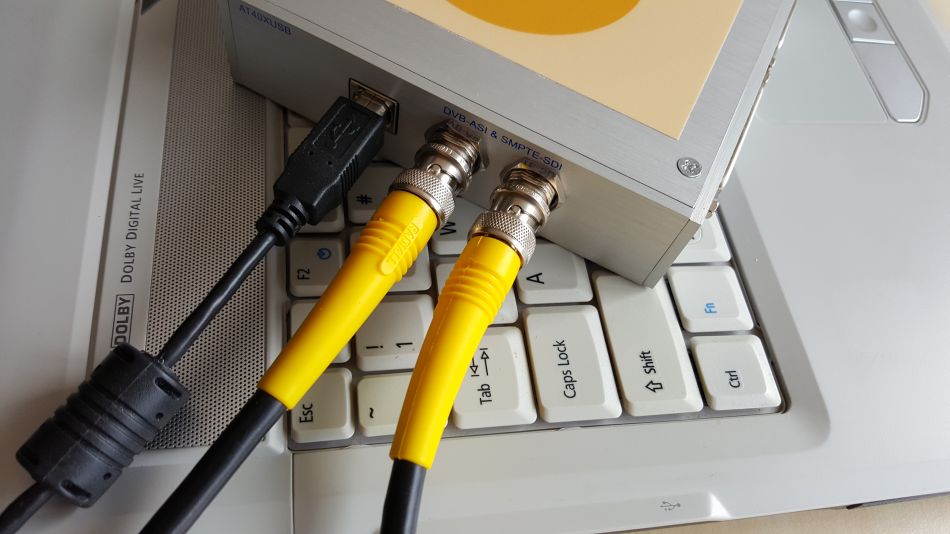

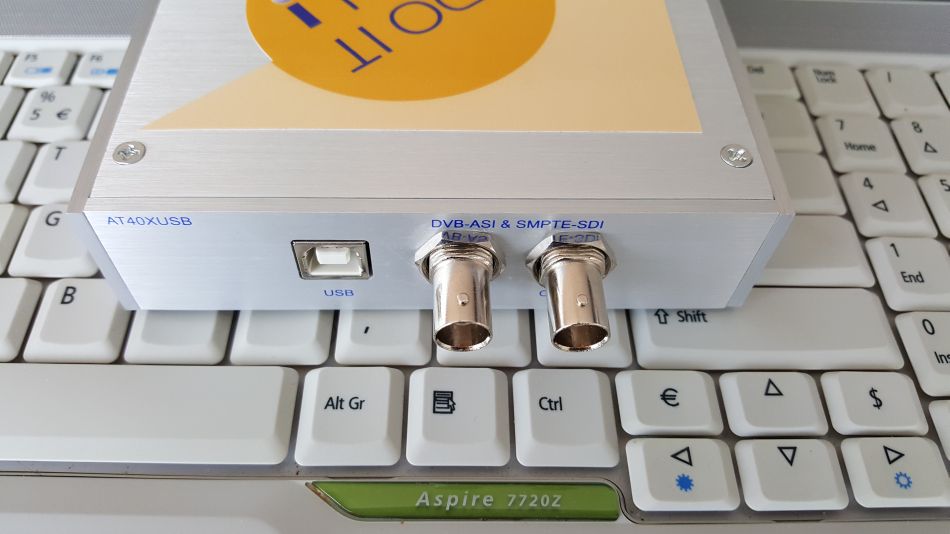

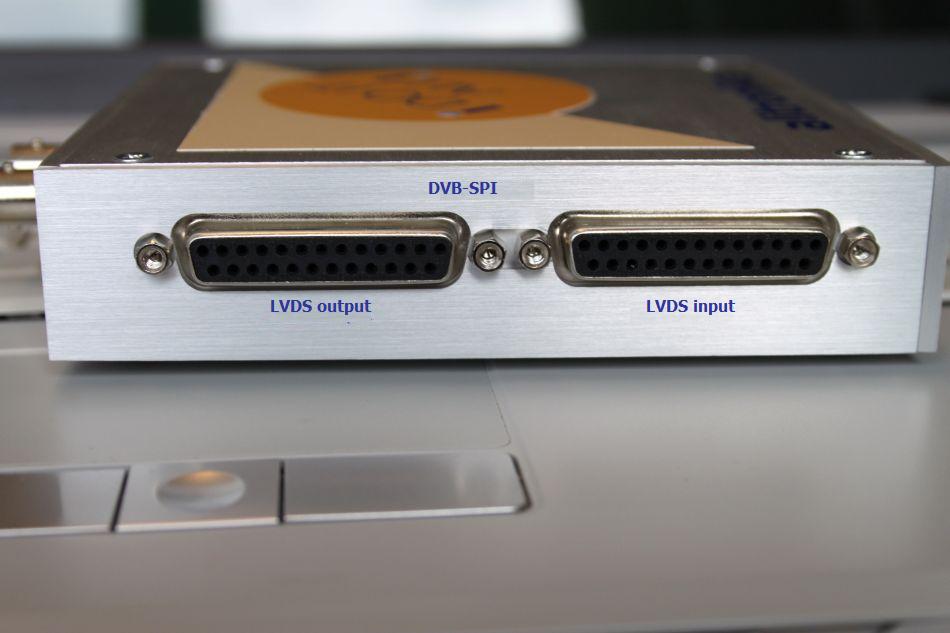

  Connections:

  Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT40XUSB is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
Universal Interface for TS Processing
Video on Demand Server
Transport Stream Test Generator
High Speed Serial Data Link
Software Based MPEG2 Encoders/Decoders

  Specification:

On Board Buffer: 16 Mbytes
DVB-ASI Connector: 75 Ohms BNC
Input Return Loss: >15 dB
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal
DVB-SPI Connector: 25-pin sub-D
DVB-ASI I/O  Bit Rate: 0 to 214 Mbit/s
DVB-SPI I/O Bit Rate: 0 to 108 Mbit/s
Bit Rate Stability:
Standard: +/- 25ppm
Maximum: +/- 1ppm
DVB-ASI Output Clock: 270 MHz
DVB-SPI Output Clock: 0 to 13.5 MHz
DVB-SPI Output Level: LVDS and 3.3V LVTTL/LVCMOS levels



spade

  Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

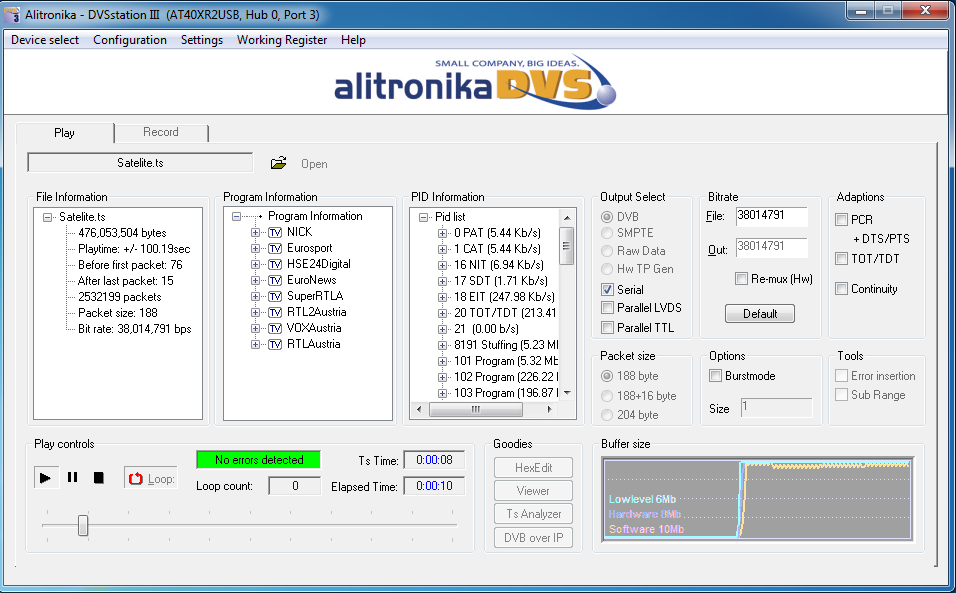

Play Screen

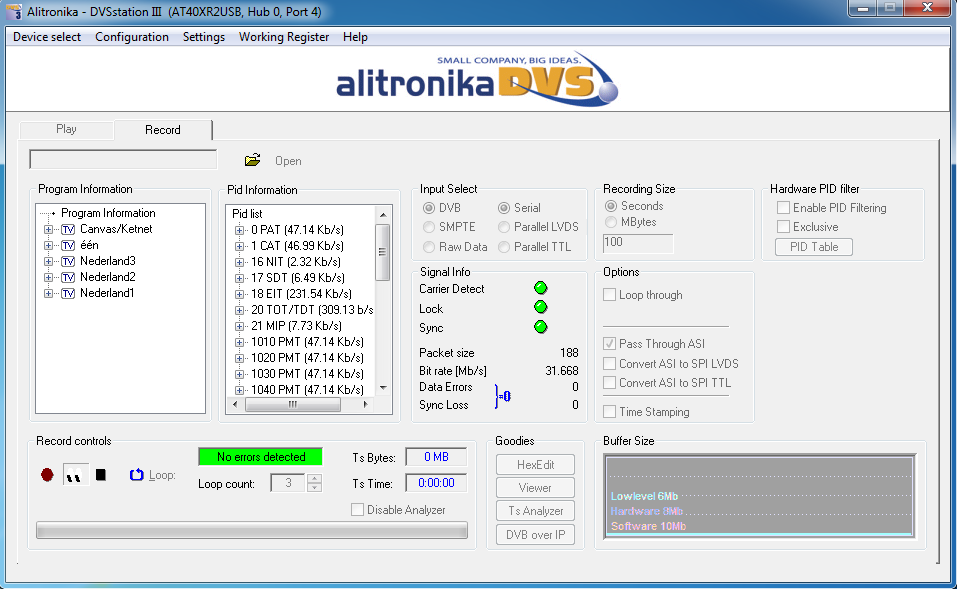

Record Screen

The application software provides the user with many functions & features such as :

PID Filtering

Bit, Byte & Packet error insertion

TOT & TDT selection

PlayBack in loops, sub-loops.......

Hardware Working Regiters are accessable for monitoring

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer,TSReader support these devices.

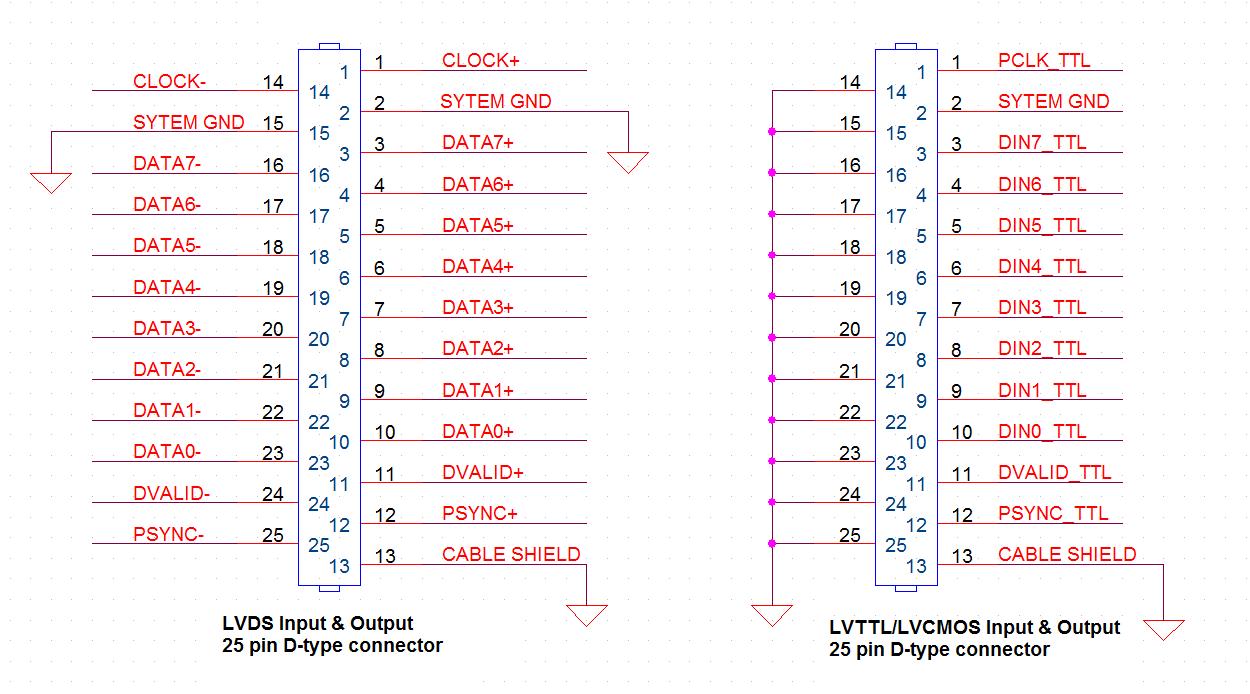

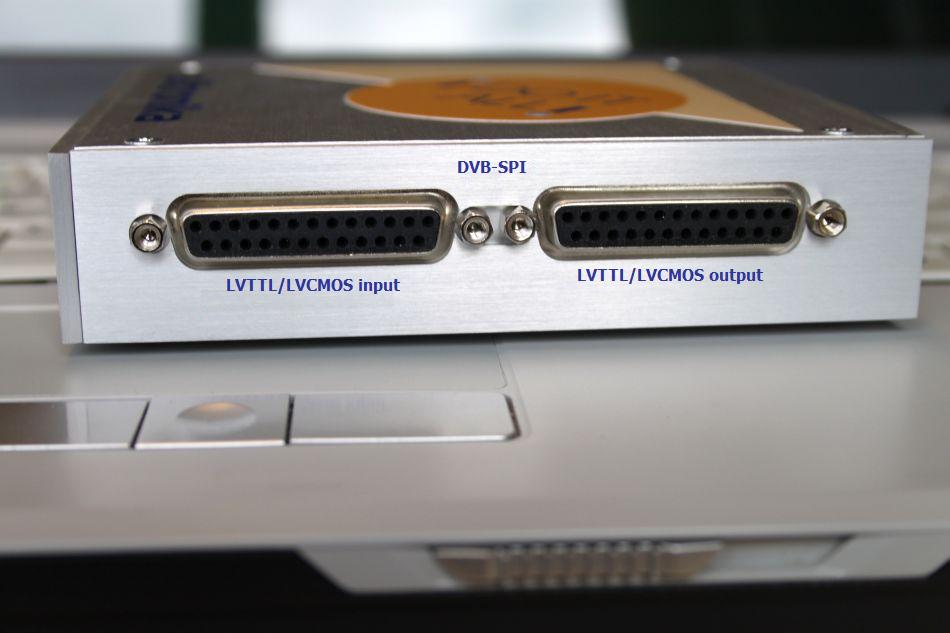

Pinout of the LVDS & LVTTL connectors
