AT4USB

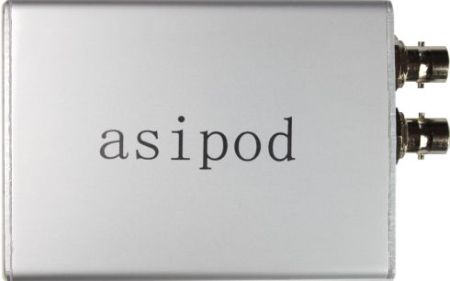

  AsiPod

  Smallest DVB device in the world

  TS Player & Recorder

  DVB-ASI Input & Output

  Powered from USB port

spade spade

  Downloads:

spade spade

  Standard Features:

 Smallest DVB-ASI I/O Device in the world
 High Speed USB 2.0
 Windows Drivers & SDK
 Linux Drivers
 Free Application Software, DVSStation3
 Supports DVB Standards A1010 Rev1 & EN50083
 Supports 188/204 byte & Arbitrary Packet Sizes

  Input

 Integrated Loop Through output
 Automatic Cable Equalization of up to 350m
 Supports True or Inverted ASI signals
 Carrier and Lock Detection
 Sync, Error & Code Violation Detection
 PID filtering by Hardware.
 PCR Time stamping by Hardware

  Output

 Programmable Output Bit Rate
 Can play Higher Bitrate then the TS file
 Can output True and Inverted signals
 Supports Burst Mode
 Null packet insertion by Hardware
 PCR, continuity counter correction
 Packet time and date correction
 Error insertion
 Hardware Generated Null & Counter Packet

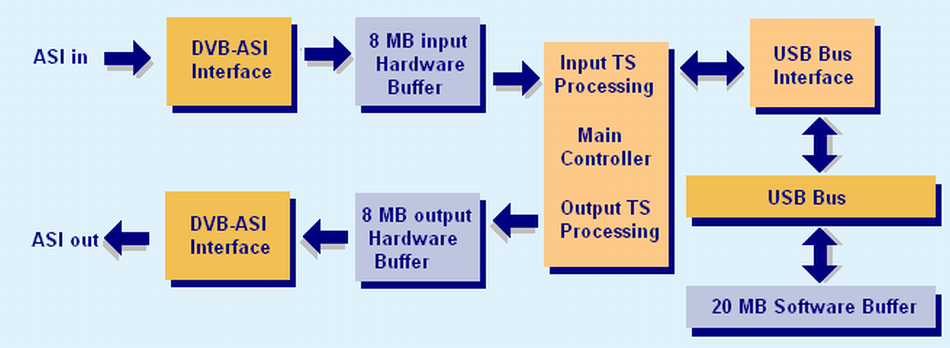

  Block Diagram:

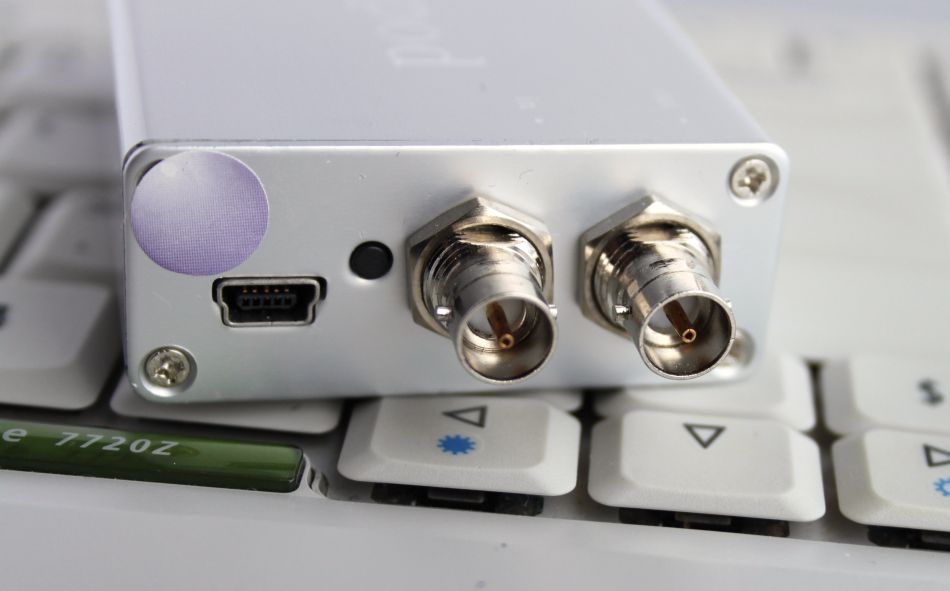

  Connections:

  Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs
the AT4USB is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
Universal Interface for TS Processing
Video on Demand Server
Transport Stream Test Generator
High Speed Serial Data Link
Software Based MPEG2 Encoders/Decoders

  Specification:

On Board Buffer: 8 Mbytes
DVB-ASI Connector: 75 Ohms Mini BNC
Input Return Loss: >15 dB
Input Signal level: 800 mV +/- 10%
Output Signal level: 1.0Vp-p nominal
DVB-ASI I/O Bit Rate: 0 to 214 Mbit/s
Bit Rate Stability:
   - Standard: +/- 25ppm
   - Maximum: +/- 1ppm
DVB-ASI Output Clock: 270 MHz

spade

  Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

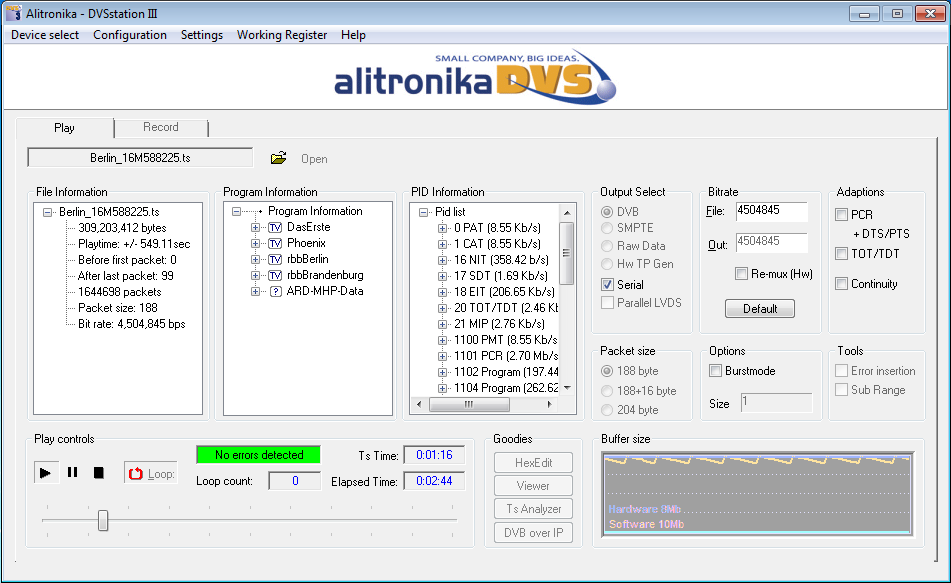

Play Screen

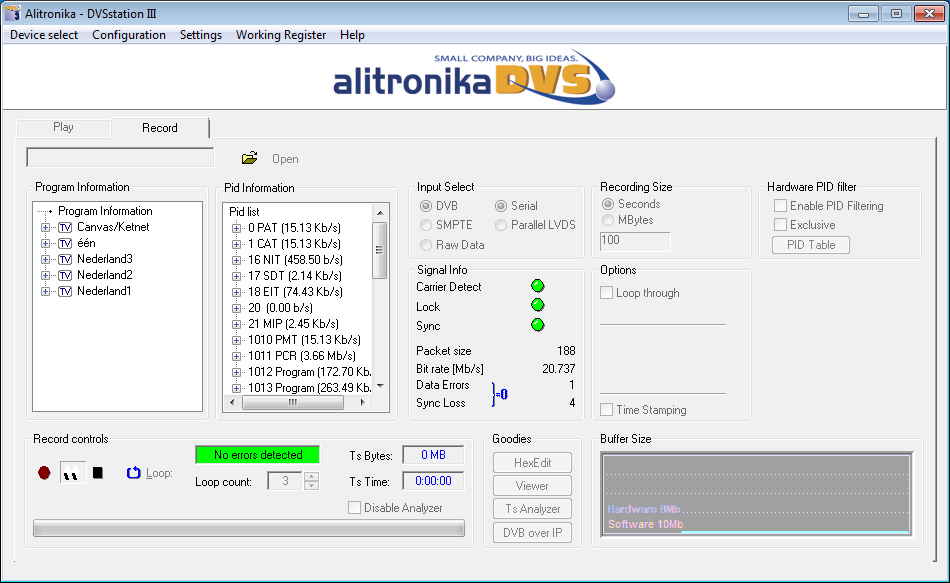

Record Screen

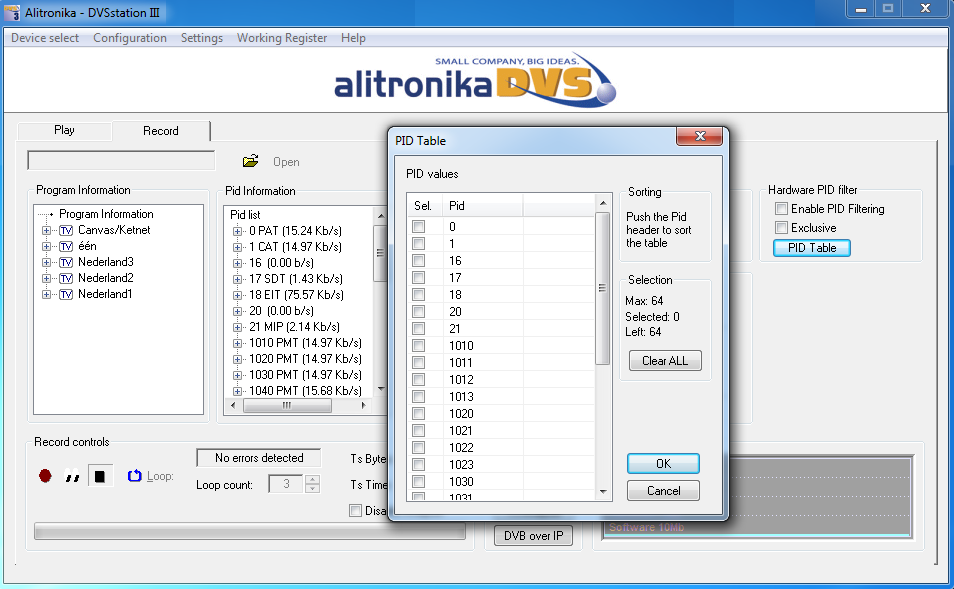

PID Filtering

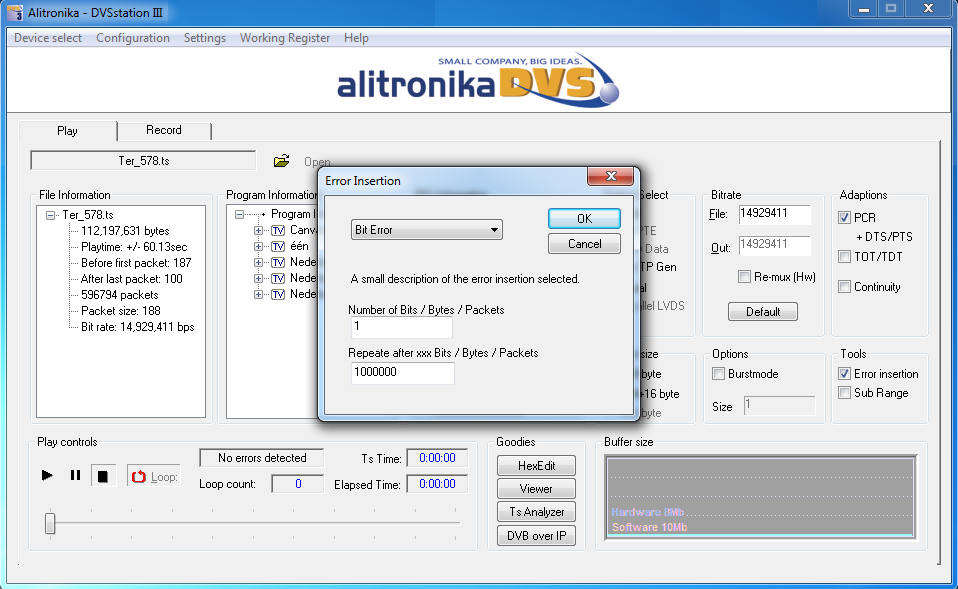

Bit, Byte & Packet error insertion

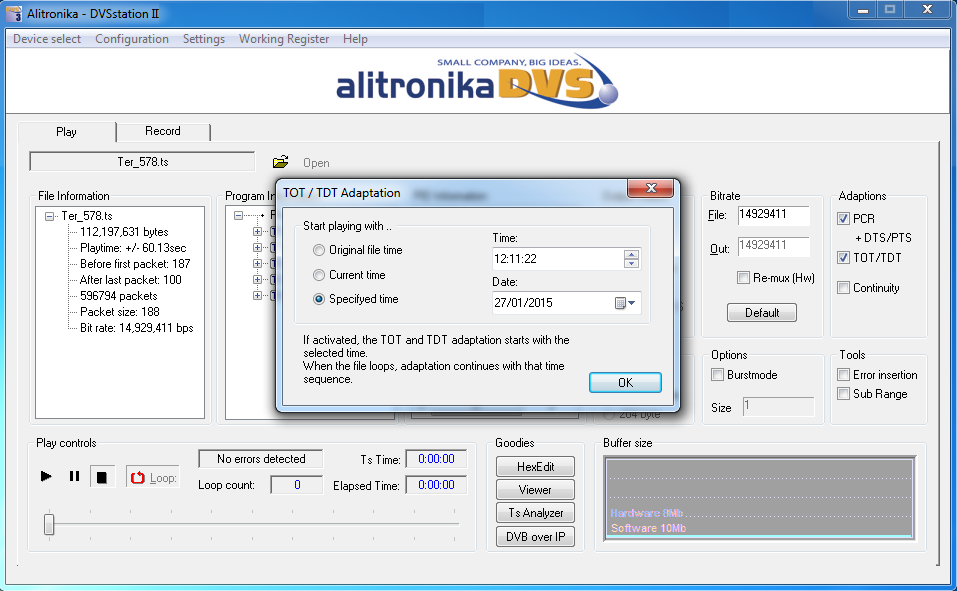

TOT & TDT selection

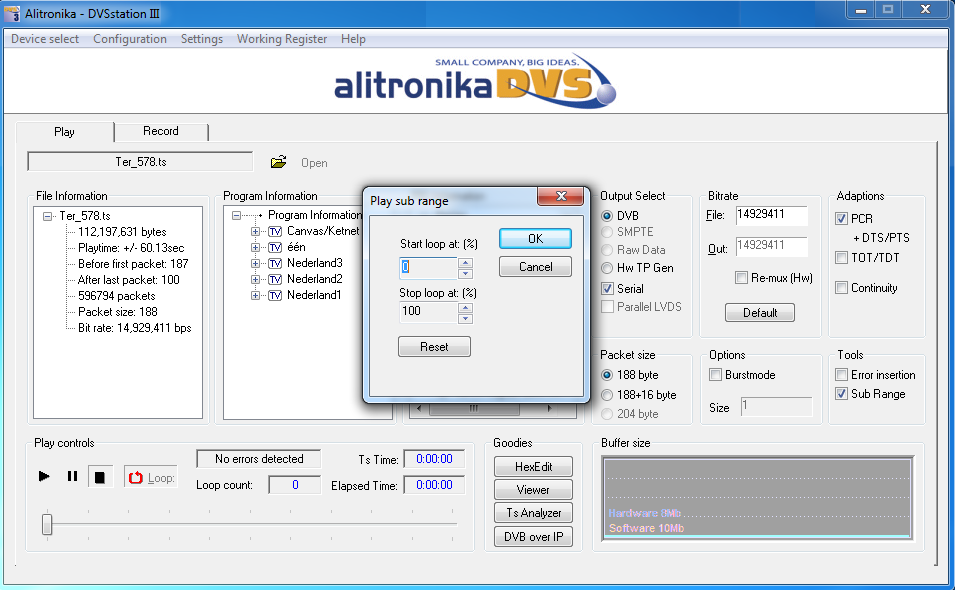

PlayBack in loops, sub-loops & more

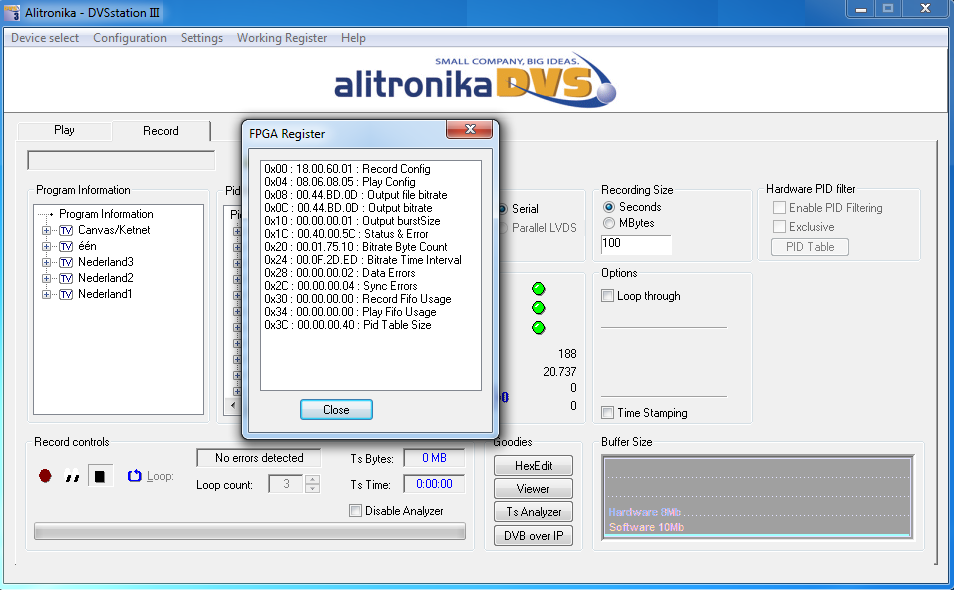

Accessable Working Regiters

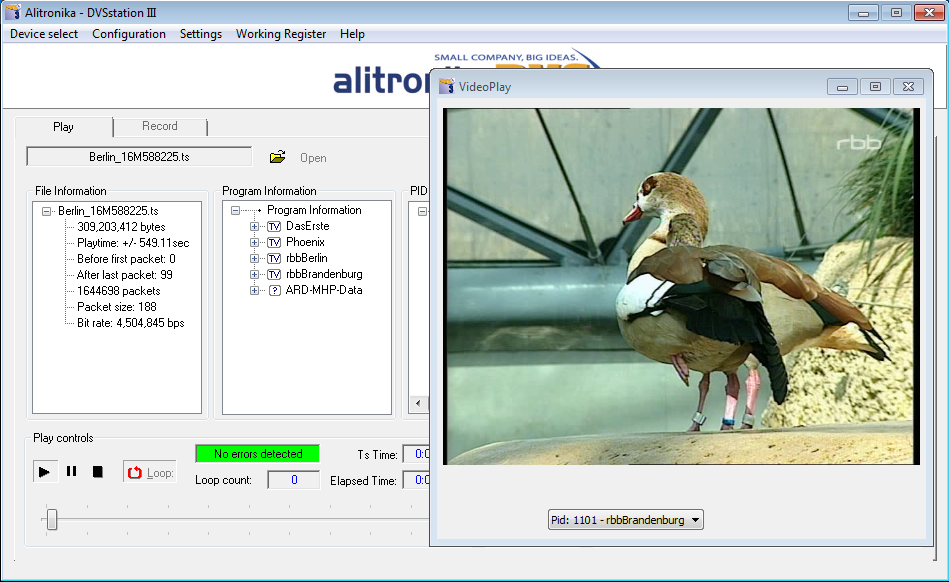

Among "Goodies" are: Video Viewer

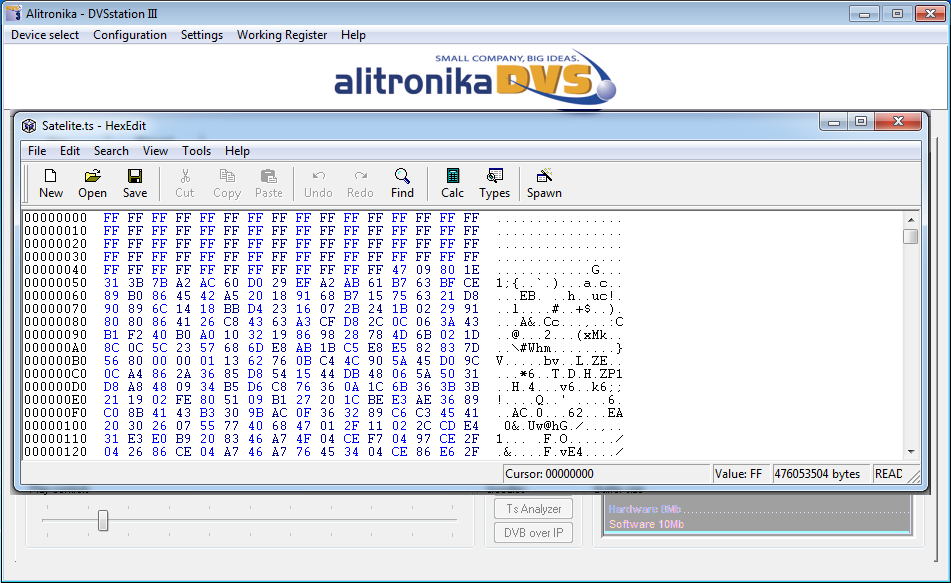

Hex Editor

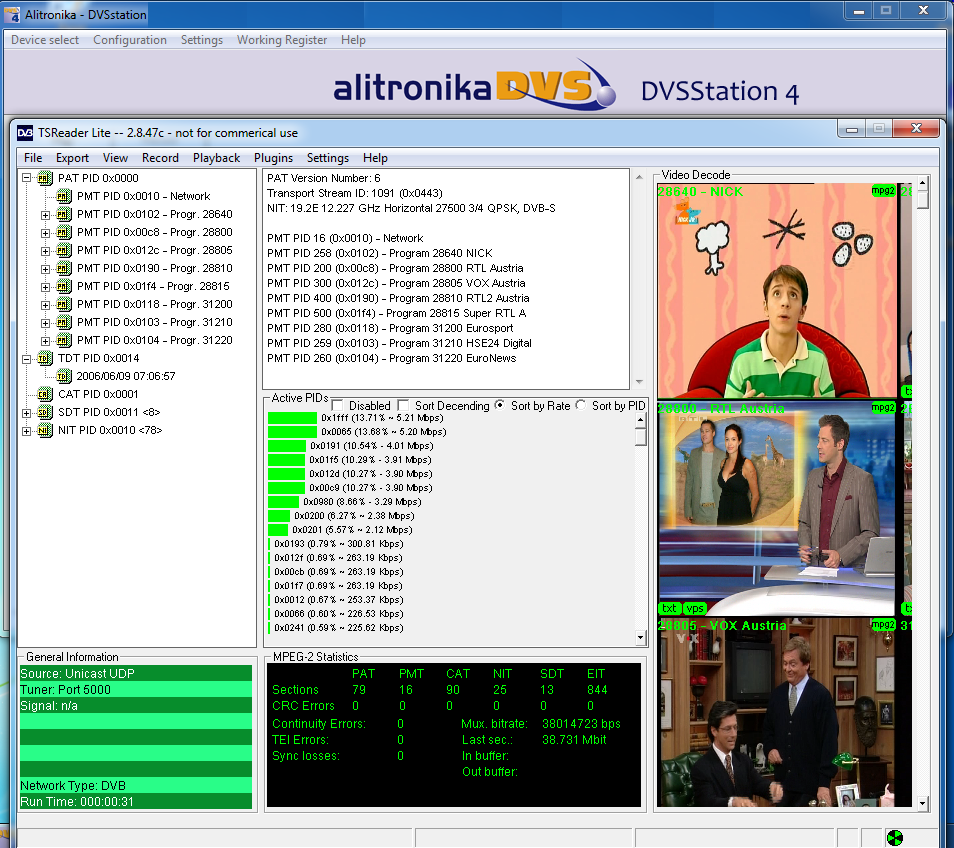

TSReader supports Alitronika's devices.

spade

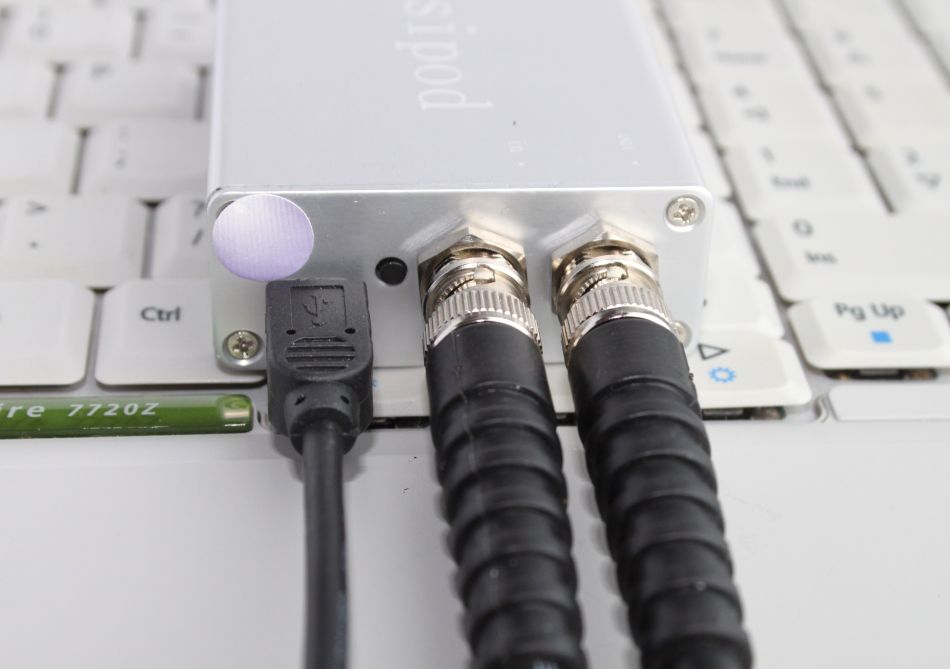

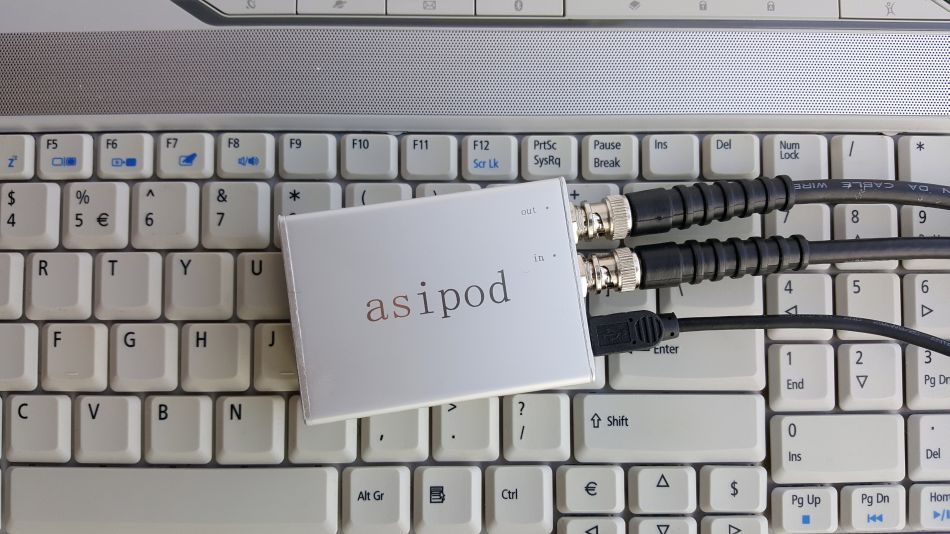

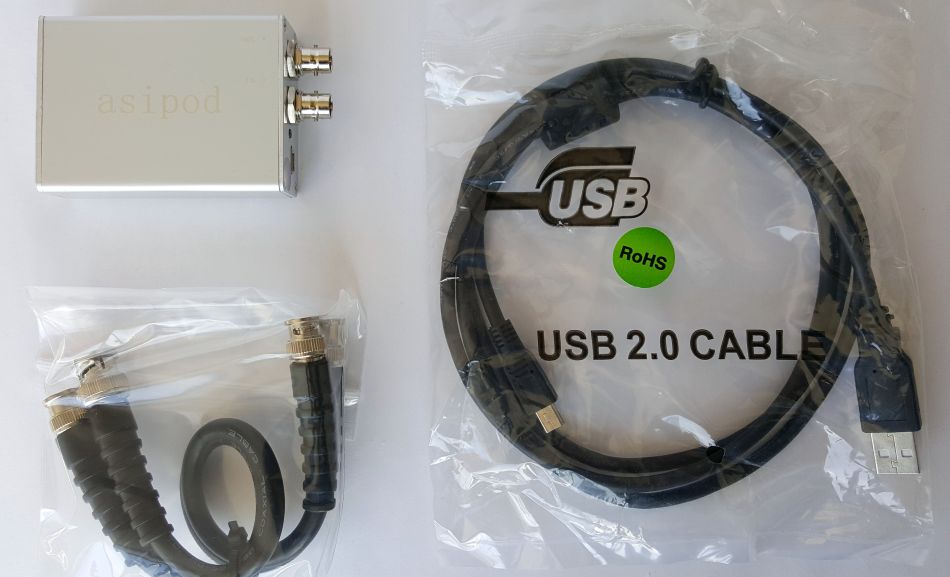

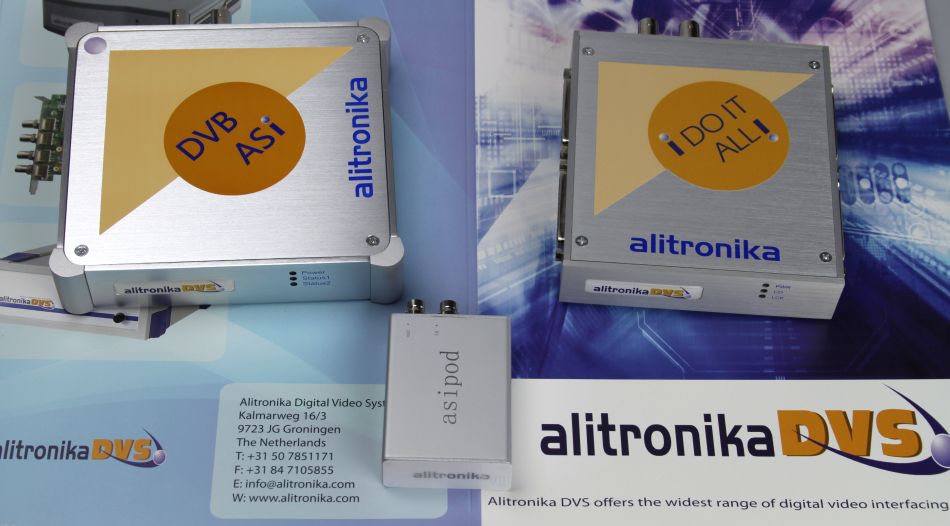

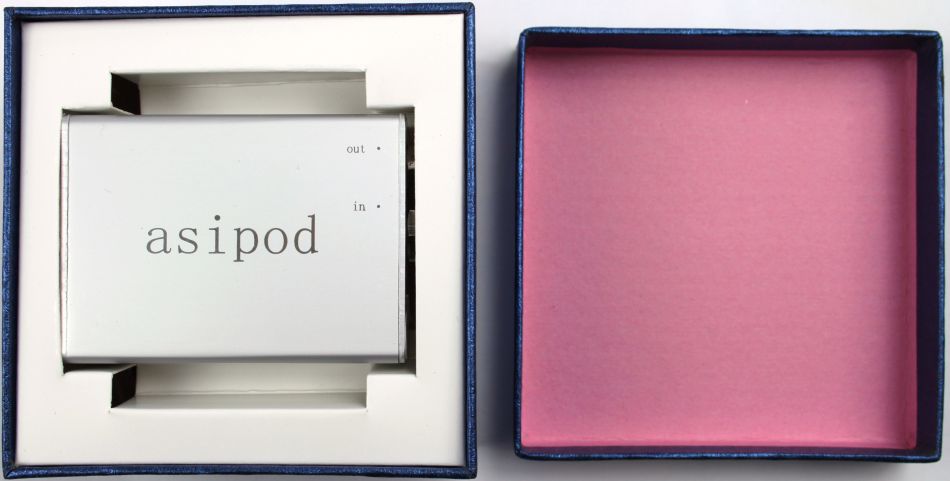

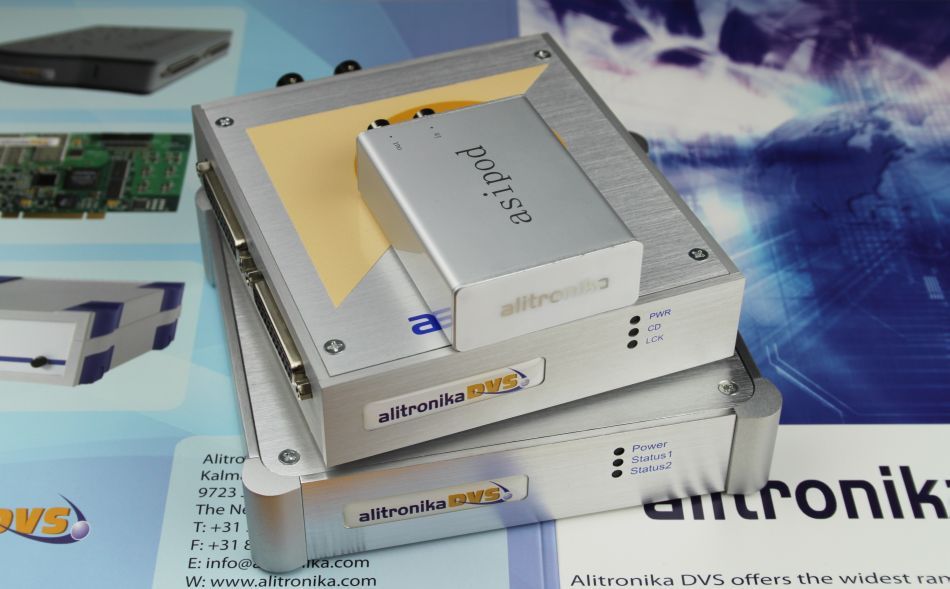

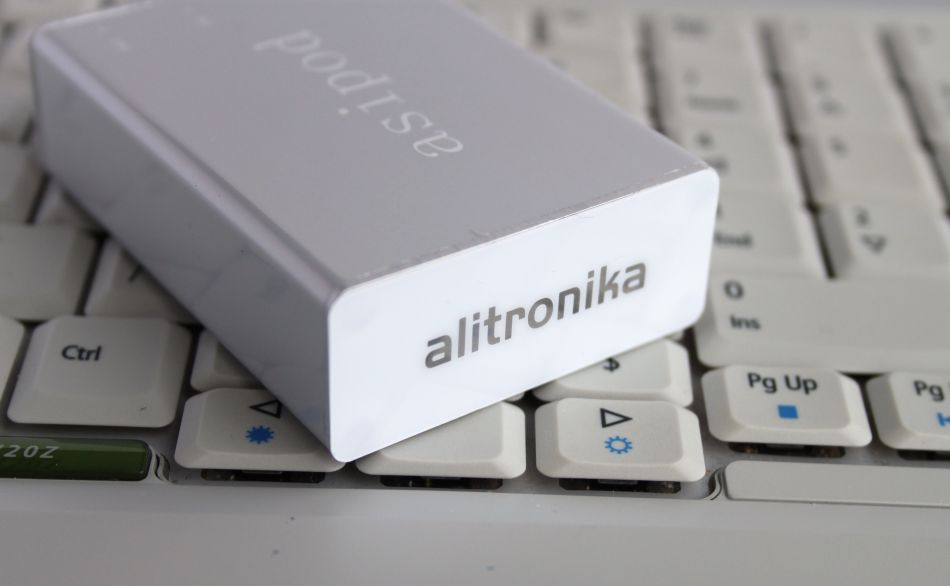

  Photo Gallery:

















 USB Stream Players &  Recorders
