AT78XUSB

  Multi Standard

  Receiver/Recorder/Converter

  DVB-T2/T/C to USB & DVB-ASI

  Powered from USB port

  Free Application Software

spade spade

  Downloads:

spade spade

  Standard Features:

Multi-Standard DVB-T2/T/C Receiver, Recorder & Converter
Supports 6, 7 & 8 MHz Bandwidth
High Speed USB 2.0
Windows Drivers + SDK
Linux Drivers
Free Application Software, DVSStation3
  Input
DVB-T2/T/C Compliant COFDM Reception
Input Frequency Range:
- High Band: 434.0 MHz to 858.0 MHz.
- Mid Band: 149.5 MHz to 426.0 MHz.
- Low Band: 50.5 MHz to 142.5 MHz.
Modulation Modes:
- DVB-T/T2: QPSK, 16QAM, 64QAM
- DVB-C: 64QAM, 128QAM, 256QAM
Guard Interval: 1/4, 1/8, 1/16, 1/32
Supports hierarchical & non-hierarchical
Supports 188, 204 Transport Packet Sizes
  Output
RF Loop Through Output
DVB-ASI Output
Supports DVB According to Standard A1010 Rev1 and EN50083

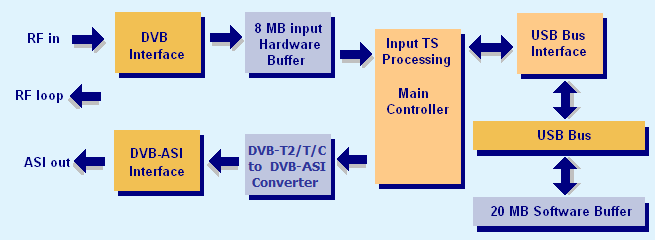

  Block Diagram:

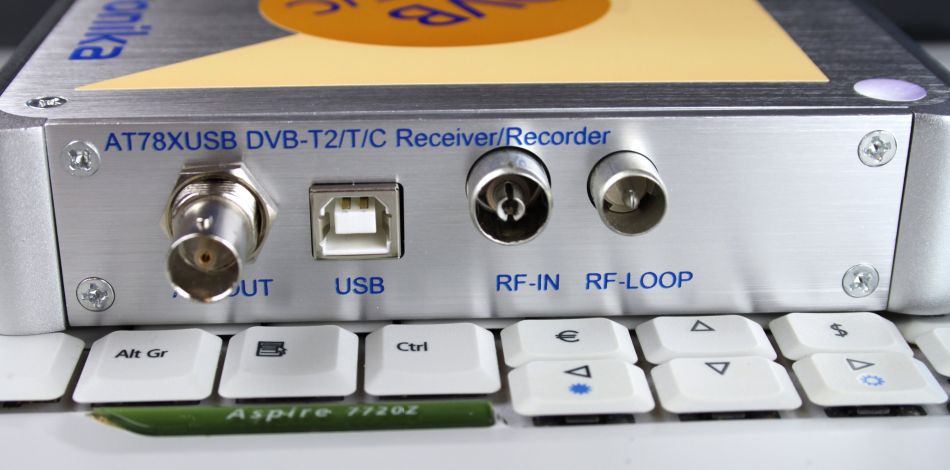

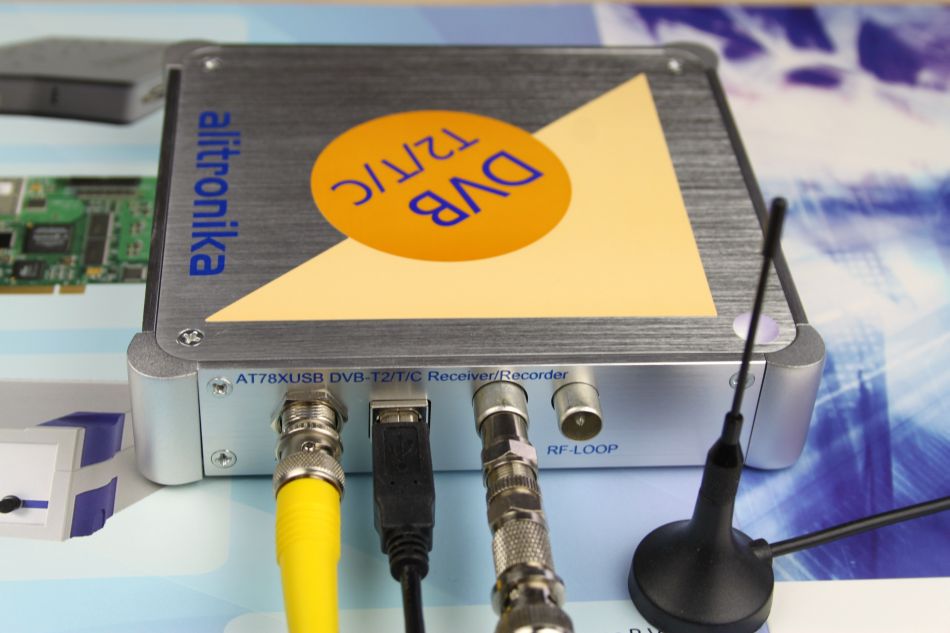

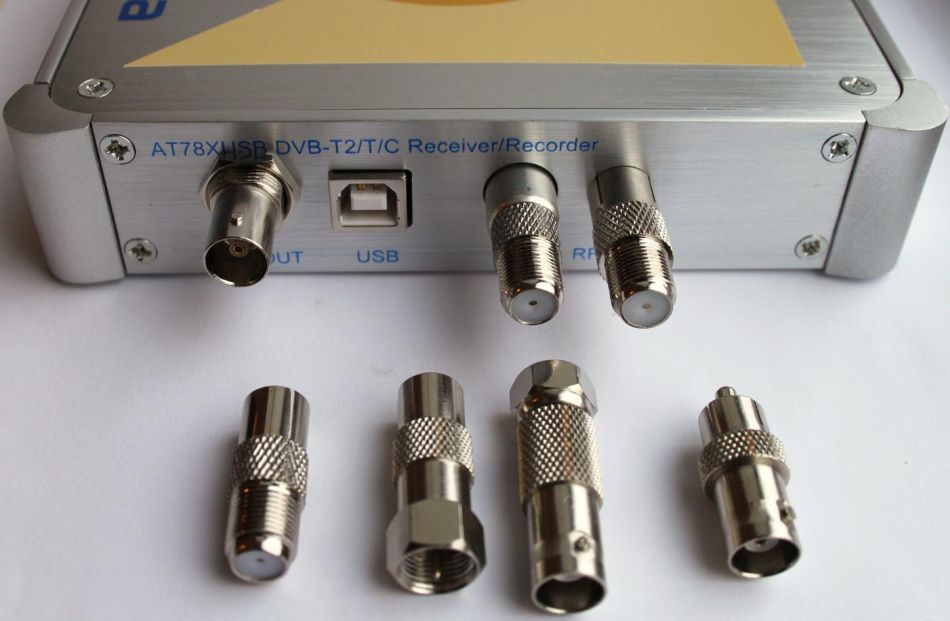

  Connections:

  Application:

Targeted for Digital Video Professionals, Sophisticated End Users and OEMs the AT78XUSB is an ideal solution for a number of applications such as:
Development Tools
DVB to IP Gateway
DVB-T2/T/C to DVB-ASI/SPI Conversion
MPEG-II Transport Stream Recording,Monitoring & Processing

  Specification:

On Board Buffer:8 Mbytes
RF Tuner Connector:
  - 75 Ohms IEC female Type
Loop Through Connector:
  - 75 Ohms IEC male Type
Input Frequency Range:
  - High Band: 434.0 MHz to 858.0 MHz
  - Mid Band: 149.5 MHz to 426.0 MHz
  - Low Band: 50.5 MHz to 142.5 MHz
Channel Bandwidth: 6, 7 & 8 MHz
RF Sensitivity: -80dBm
COFDM Spectrum: 2k and 8k carriers
Standards: DVB-T2/T/C compliant
Modulation Modes:
  - DVB-T/T2: QPSK, 16QAM, 64QAM
  - DVB-C: 64QAM, 128QAM, 256QAM
Guard Interval Modes: 1/4, 1/8, 1/.16, 1/32
DVB-ASI Connector: 75 Ohms BNC.
Output Signal level: 1.0Vp-p nominal
DVB-ASI Output Bit Rate: 0 to 214 Mbit/s
DVB-SPI Output Bit Rate: 0 to 108 Mbit/s
DVB-ASI Output Clock: 270 MHz

  spade

  Application Software:

DVSStation3/4/IP: Alitronika devices are supported by DVSStation3, DVSStation4 or DVSStationIP, Alitronika's FREE Transport Stream Player, Recorder, Analyser and converter application software. Please refer to the specification and User Manual of these applications for more information. Even better please download them from our website and try them out. They works in DEMO mode without any Alitronika devices.

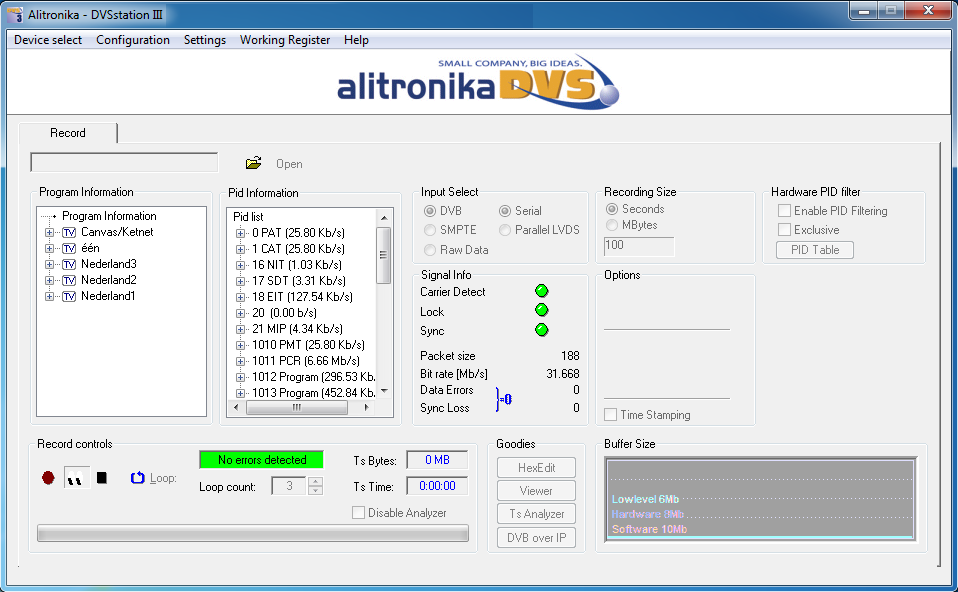

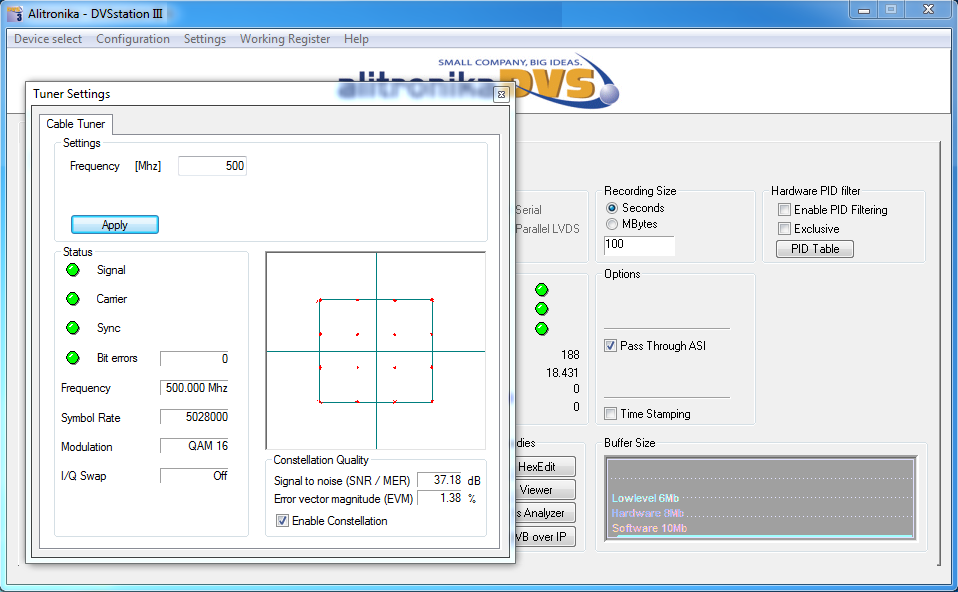

Record Screen

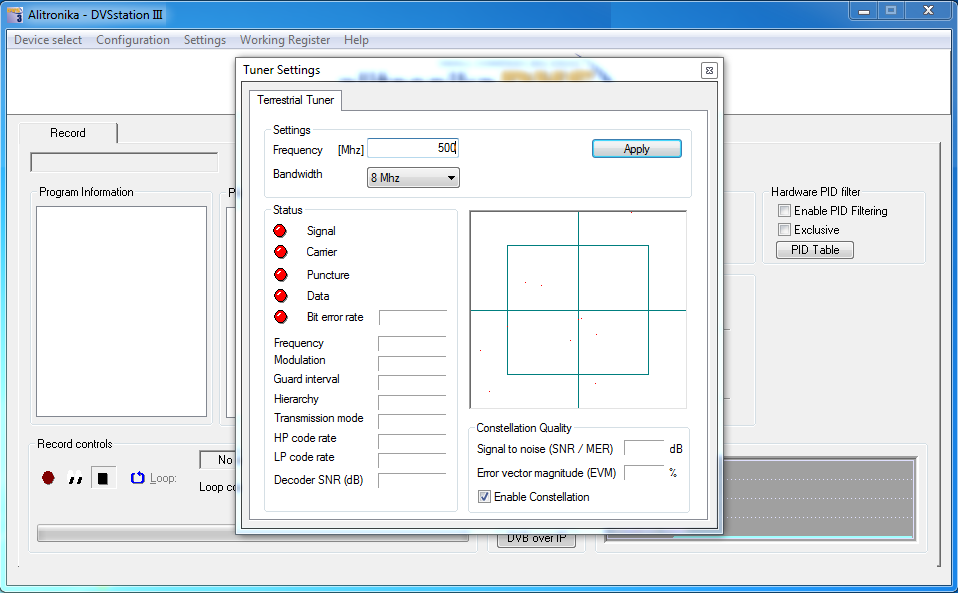

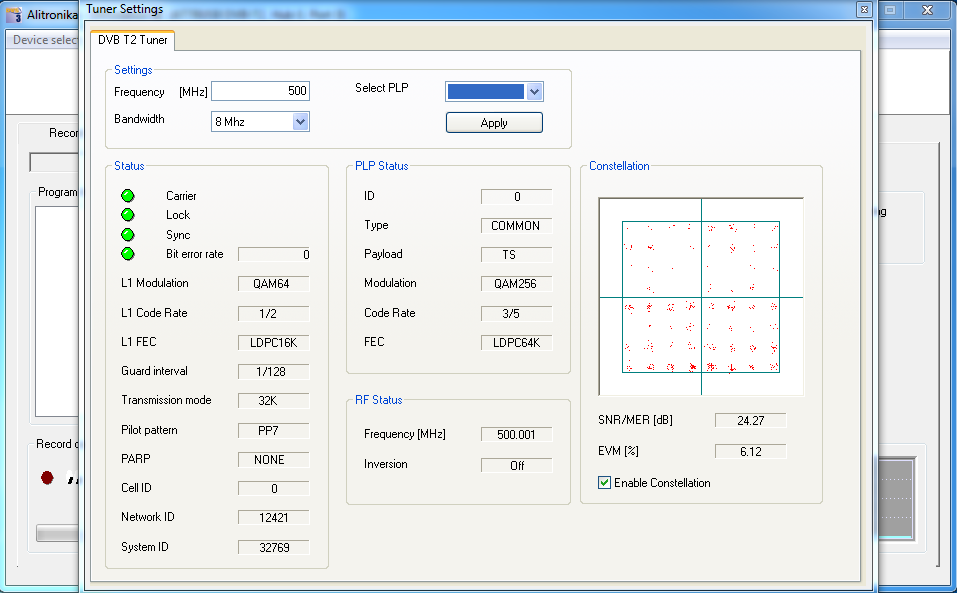

DVB-T2 Mode Settings

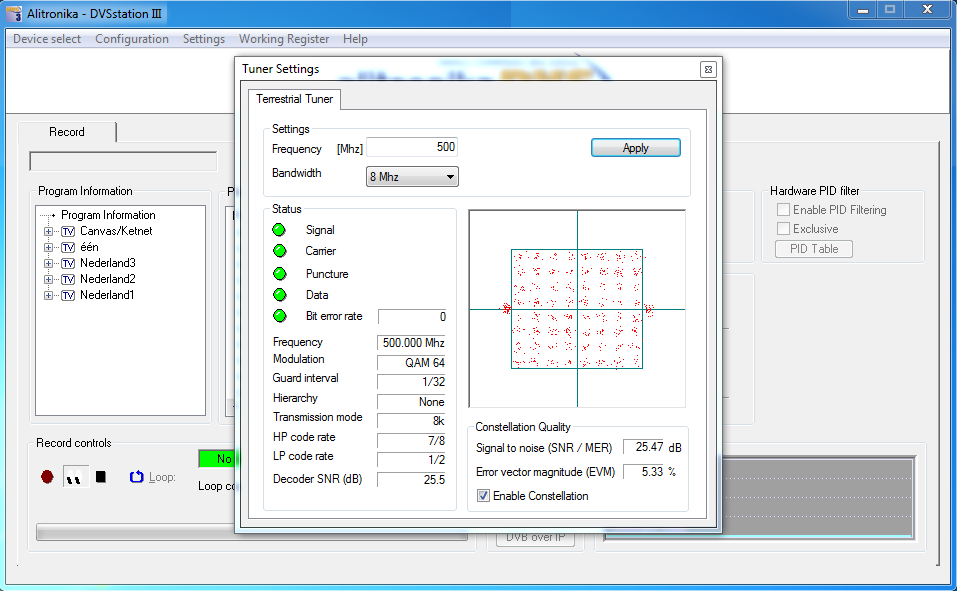

DVB-T Mode Settings

DVB-C Mode Settings

Error screen when selecting wrong settings or no RF

The application software provides the user with many functions & features such as :

PID Filtering

Hardware Working Regiters are accessable for monitoring

Among the "Goodies" are a Video Viewer

Hex Editor

A DVB to IP Player/Converter

As well as the Integrated Quick TS Analyzer, TSReader support these devices.

spade

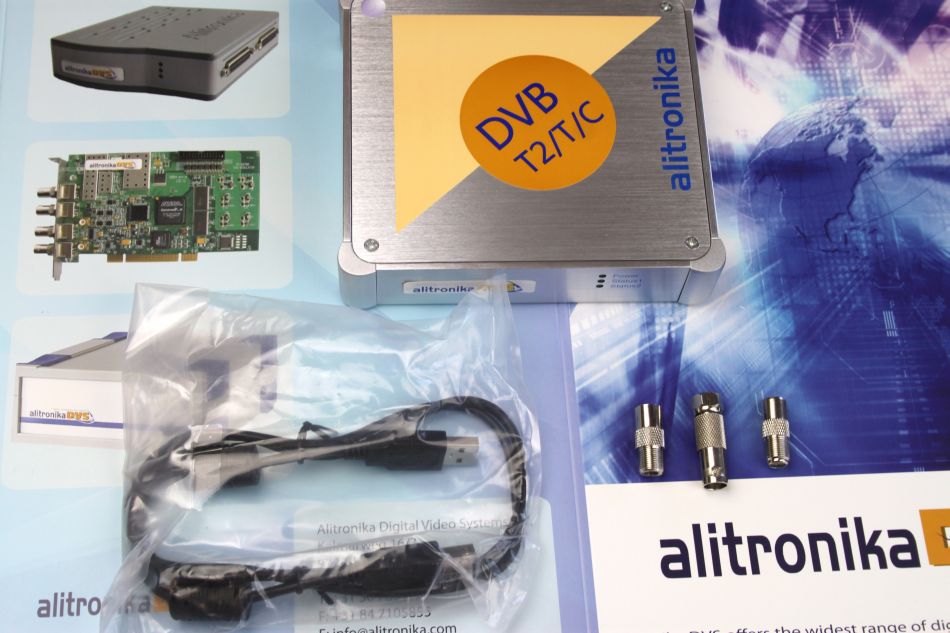

  Photo Gallery:













  USB Receivers/Recorders







spade
spade spade spade
